here are two solutions for a 250-300 tph stone crushing line:
Solution 1: Two PF1315 Impact Crushers
For this solution, we recommend using two PF1315 impact crushers to achieve a production capacity of 250-300 tph. The configuration for this solution is as follows:
Vibrating feeder – GZD1100x4900
Primary jaw crusher – PE900x1200
Secondary impact crusher – PF1315 (2 units)
Vibrating screen – 3YK2460
Belt conveyor
The primary jaw crusher will first crush the materials into smaller particles, then the two PF1315 impact crushers will further break down the materials into even smaller sizes. Finally, the vibrating screen will separate the finished products based on their sizes.
Solution 2: Cone Crusher
Alternatively, if you prefer using cone crushers instead of impact crushers, we recommend the following configuration:
Vibrating feeder – GZD1100x4900
Primary jaw crusher – PE900x1200
Secondary cone crusher – PYZ1750
Tertiary cone crusher – PYD1750
Vibrating screen – 3YK2460
Belt conveyor
In this solution, the primary jaw crusher will again crush the materials into smaller particles, followed by two cone crushers that will further reduce the particle size. The vibrating screen will then separate the finished products based on their sizes.
Investment and Price
The investment and price for these two solutions may vary depending on your specific requirements and the market conditions. Generally, the cost of using two PF1315 impact crushers is higher than using two cone crushers due to the higher production capacity of the impact crushers. However, the cone crushers may have a longer service life and require less maintenance.
Overall, both solutions can provide a high-quality and efficient stone crushing line for your project. We recommend evaluating your specific needs and budget to determine which solution is best for you.

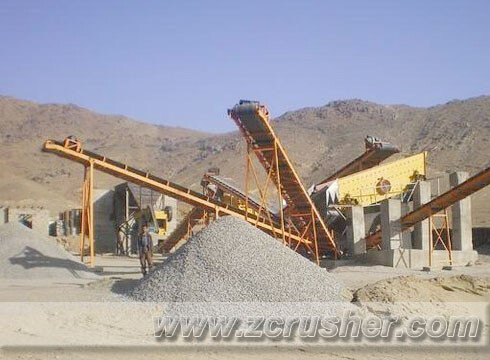

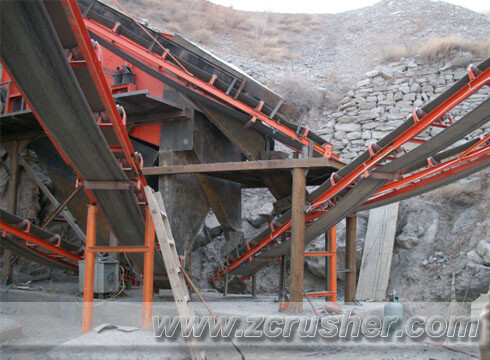

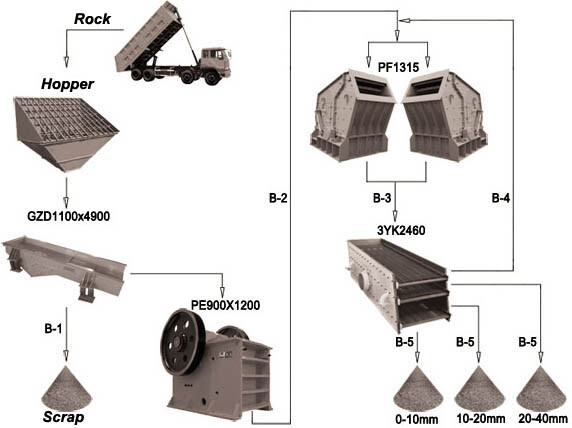

Stone crushing line Stone crushing line Process of PF1315 stone crushing line
No. | Equipment | Model | Motor (KW) | Number |
Hopper | LC3000X4000 | 1 | ||
I | Vribrating Feeder | GZD1100x4900 | 11 | 1 |
II | Jaw Crusher | PE900x1200 | 132 | 1 |
III | Impact Crusher | PF1315 | 200 | 2 |
Ⅳ | Vribrating Screen | 3YK2460 | 37 | 1 |
Belt | ||||
No. | Name | Length (m) | Motor (KW) | Number |
B1 | B500 | 18 | 5.5 | 1 |
B2 | B1200 | 23 | 15 | 1 |
B3 | B1200 | 24 | 15 | 1 |
B4 | B800 | 26 | 15 | 1 |
B5 | B800 | 20 | 11 | 3 |
