Ball Mill

The ball mill is suitable in the powder rubs each kind of ore and other materials, the balll mill is widely used in the dressing, professions, building materials and chemical industry and so on.

We're here to help:
Easy ways to get the answers you need
Share With:

Description



Introduction of ball mill
The ball mill is suitable in the powder rubs each kind of ore and other materials, the balll mill is widely used in the dressing, professions, building materials and chemical industry and so on. It is divided into two rubbing way-the dry and the wet .There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material. The ball mill is a key equipment to grind the crushed materials after the material were broken , and carrying on the smashing again. and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc,the ball mill carries on the dry type or the wet powder to each kind of ore and other grindability material rubs.



Working Principle of ball mill

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.



Application of Ball Mill

The ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. Our ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.

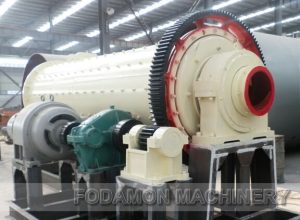

Ball mill in workshop
















Ball mill working in jobsite















Small ball mill in workshop





Ball mill loading for shipping

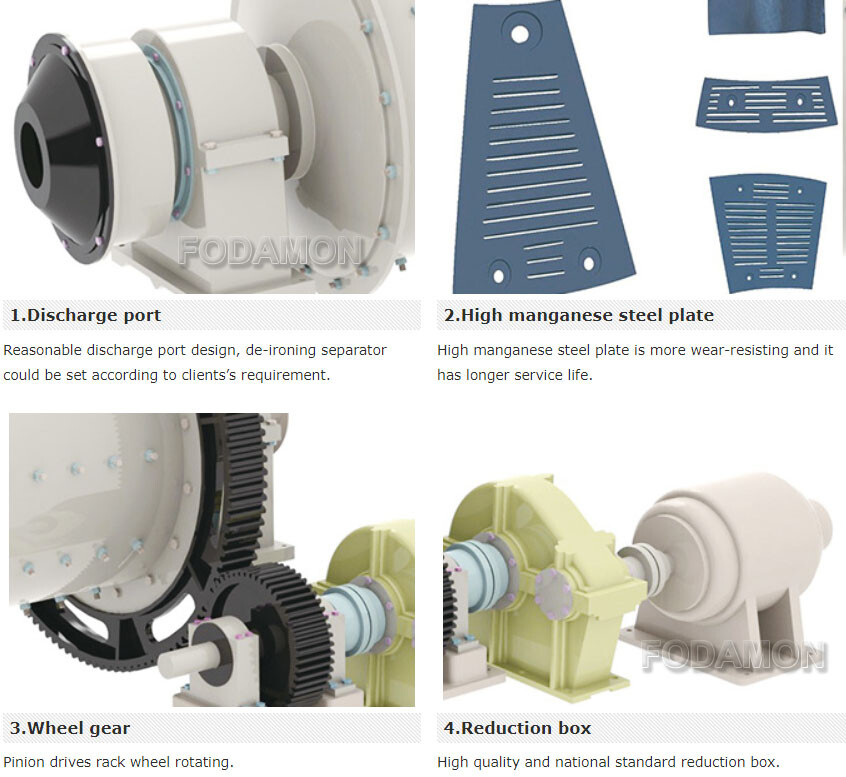

Parts of ball mill



Specification


Technical parameter of Ball Mill

Model

Feeding size
(mm)

Discharging size
(mm)

Capacity
(t)

Motor power
(kw)

Total Weight
(t)

Ф900×1800

≤20

0.075-0.89

0.65-2

18.5

5.8

Ф900×3000

≤20

0.075-0.89

1.1-3.5

22

6.8

Ф1200×2400

≤25

0.075-0.6

1.5-4.8

30

12

Ф1200×3000

≤25

0.074-0.4

1.6-5

37

13.2

Ф1200×4500

≤25

0.074-0.4

1.6-5.8

55

13.7

Ф1500×3000

≤25

0.074-0.4

2-5

75

16.5

Ф1500×4500

≤25

0.074-0.4

3-6

110

21

Ф1500×5700

≤25

0.074-0.4

3.5-6

130

24.7

Ф1830×3000

≤25

0.074-0.4

4-10

130

34.5

Ф1830×4500

≤25

0.074-0.4

4.5-12

155

38

Ф1830×6400

≤25

0.074-0.4

6.5-15

210

46

Ф1830×7000

≤25

0.074-0.4

7.5-17

245

49

Ф2100×3000

≤25

0.074-0.4

6.5-36

155

48

Ф2100×4500

≤25

0.074-0.4

8-43

245

59

Ф2100×7000

≤25

0.074-0.4

8-48

280

67.5

Ф2200×4500

≤25

0.074-0.4

9-45

280

58

Ф2200×6500

≤25

0.074-0.4

14-26

380

63

Ф2200×7000

≤25

0.074-0.4

15-28

380

65.3

Ф2200×7500

≤25

0.074-0.4

15-30

380

66.5

Ф2400×3000

≤25

0.074-0.4

7-50

245

65

Ф2400×4500

≤25

0.074-0.4

8.5-60

320

70

Ф2700×4000

≤25

0.074-0.4

12-80

400

92

Ф2700×4500

≤25

0.074-0.4

12-90

430

102

Ф3200×4500

≤25

0.074-0.4

Determined by the technological process

600

137

Ф3600×4500

≤25

0.074-0.4

Determined by the technological process

850

158

Ф3600×6000

≤25

0.074-0.4

Determined by the technological process

1250

175



Note: This is just reference. Please contact us to get suitable solution and competitive price.



Package

Packaged with exporting wooden/plywood case. And the package can be customized.
