Vibrating Screen

The circular motion of the vibrating screen is designed for the screening of stones in the quarry, and it can also be used for product grading in the departments of coal mine, mineral processing, building materials, electric power and chemical industry.

We're here to help:
Easy ways to get the answers you need

Description

Description of Vibrating Screen


The circular motion of the vibrating screen is designed for the screening of stones in the quarry, and it can also be used for product grading in the departments of coal mine, mineral processing, building materials, electric power and chemical industry. YK series is a new type of machine in China. The machine adopts eccentric vibration exciter and tire coupling, which has the advantages of advanced structure, strong vibration force, small vibration noise, easy maintenance, firmness and durability.



Working Principle of Vibrating Screen

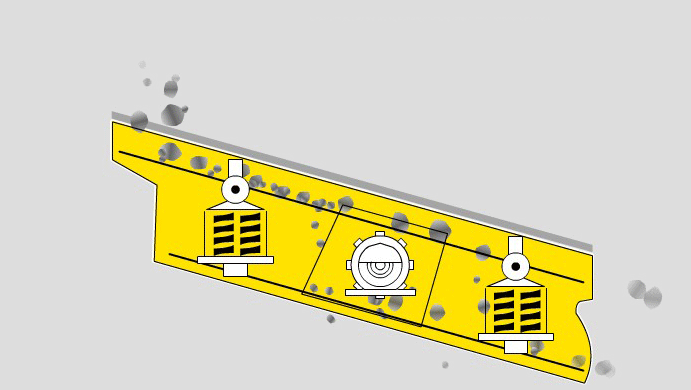

The circular vibrating screen is mainly composed of screen box, vibration exciter, suspension (or support) device and motor, etc. The motor drives the main shaft of the exciter to rotate through the V-belt, and the screen box vibrates due to the centrifugal inertia force of the unbalanced weight on the exciter. Different amplitudes can be obtained by changing the eccentric axis of the exciter.



Specification


Technical Parameter of Vibrating Screen



Model

Sieve layer

Sieve area
(m³)

Mesh size
(mm)

Max feeding size
(mm)

Capacity
(m³/h)

Motor power
(kw)

Total weight(kg)

Dimensions
(LxWxH)
(mm)

2YK1225

2

6

4-50

400

8-60

5.5

3500

2930x1860x870

3YK1225

3

9

4-50

400

10-70

5.5

3850

3070x1860x1210

2YK1230

2

7.2

4-50

400

12-78

7.5

4200

3430x1860x870

3YK1230

3

10.8

4-50

400

13-80

7.5

4600

3570x1860x1210

2YK1237

2

8.88

4-50

400

15-86

7.5

4600

4050x1860x870

3YK1237

3

13.22

4-50

400

16-90

7.5

5200

4270x1860x1210

2YK1535

2

10.5

5-50

400

20-125

11

5890

4120x2210x1230

3YK1535

2

15.75

5-50

400

21-125

11

6700

4360x2210x1610

2YK1545

2

13.5

5-50

400

22-150

15

6330

5120x2210x1230

3YK1545

3

20.25

5-50

400

22-150

15

6800

5360x2210x1610

4YK1545

4

27

5-50

400

22-155

18.5

7800

5930x2210x2060

2YK1548

2

14.4

5-50

400

22.5-162

15

6980

5420x2210x1230

3YK1548

3

21.6

5-50

400

22.5-162

15

7700

5660x2210x1610

4YK1548

4

28.8

5-50

400

22.5-162

18.5

8700

6230x2210x2060

2YK1848

2

17.28

5-80

400

25-206

15

9080

5420x2550x1420

3YK1848

3

25.92

5-80

400

32-276

18.5

9600

5660x2550x1780

4YK1848

4

34.54

5-80

400

32-285

22

11100

6290x2550x2160

2YK1854

2

19.44

5-80

400

32-312

18.5

10150

5960x2550x1420

3YK1854

3

29.16

5-80

400

32-312

22

10840

6260x2550x1780

4YK1854

4

38.88

5-80

400

32-336

30

12840

6830x2550x2160

2YK2160

2

25.2

5-100

400

50-475

30

11780

6720x2840x1530

3YK2160

3

37.8

5-100

400

50-475

30

12800

7030x2840x1910

4YK2160

4

50.4

5-100

400

50-497

37

14800

7300x2840x2380

2YK2460

2

28.8

5-100

400

65-550

37

15600

7020x3140x1530

3YK2460

3

43.2

5-100

400

70-620

37

17600

7300x3140x1910

4YK2460

4

57.6

5-100

400

80-680

45

19600

7600x3140x2380
