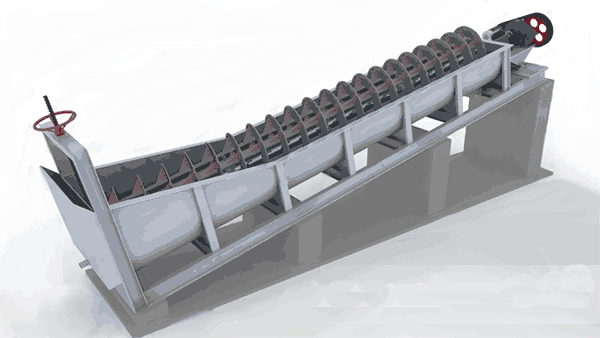

Spiral Sand Washing Machine
Spiral sand washing machine is designed for washing and cleaning sand, gravel and aggregates in mining, quarry and construction industries. Its spiral conveying structure provides continuous washing, effective impurity removal and large processing capacity for sand production lines.
- Efficient Sand Cleaning – Removes soil, stone powder and impurities effectively
- Wide Industrial Application – Mining, quarry and aggregate production lines
- Large Processing Capacity – Continuous spiral washing for bulk materials
- Stable Washing Performance – Reliable operation with simple maintenance
Tell us your material type, washing capacity and production requirements. Our engineers can recommend a suitable spiral sand washing machine solution for your project.
If you want to learn more about our spiral sand washing machine and solution, Leave a Message!

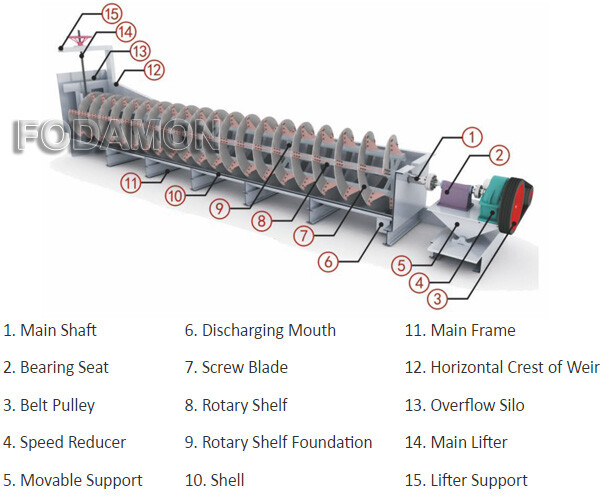

Working Principle
When the sand washing machine is working, the motor drives the impeller to rotate slowly after decelerating through the triangle belt, reducer and gear. The sand enters the washing tank with the feed tank, rolls under the drive of the impeller, and grinds with each other to remove the impurities covering the surface of the sand, and destroys the water vapor layer covering the sand particles, so as to facilitate dehydration; meanwhile, add water to form a strong water flow, and timely remove the impurities and small specific gravity The foreign matters are taken away and discharged from the overflow outlet washing tank to complete the cleaning function. The clean sand is taken away by the blade, and then the sand is poured into the discharge chute from the rotating impeller to complete the cleaning function of the sand.
If you want to learn more about our spiral sand washing machine and solution, Leave a Message!
If you want to learn more about our spiral sand washing machine and solution, Leave a Message!
Single Spiral Sand Washer Technical Parameter
| Model | XS0760 | XS1075 | XS1275 | XS1575 |
| Diameter of spiral (mm) | 750 | 1000 | 1200 | 1500 |
| Length of spiral (mm) | 6000 | 6000 | 7500 | 7500 |
| Speed of spiral (r/min) | 18 | 18 | 16 | 16 |
| Dealing capacity (t/h) | 15-30 | 30-50 | 50-80 | 80-120 |
| Motor (kw) | 7.5 | 11 | 15 | 22 |
| Length (m) | 7.8 | 9.6 | 9.7 | 9.9 |
| Width (m) | 0.8 | 1.25 | 1.44 | 1.85 |
| Heigth (m) | 1.5 | 2.2 | 2.4 | 2.8 |
Double Spiral Sand Washer Technical Parameter
| Model | XS1500 | XS2000 | XS2400 | XS3000 |
| Diameter of spiral (mm) | 750×2 | 1000×2 | 1200×2 | 1500×2 |
| Length of spiral (mm) | 7500 | 7500 | 7500 | 7500 |
| Speed of spiral (r/min) | 18 | 18 | 18 | 18 |
| Dealing capacity (t/h) | 60-80 | 80-150 | 150-220 | 180-280 |
| Motor (kw) | 7.5×2 | 11×2 | 15×2 | 22×2 |
| Length (m) | 9.6 | 9.6 | 10.3 | 10.5 |
| Width (m) | 1.75 | 2.25 | 2.65 | 3.35 |
| Heigth (m) | 1.5 | 2.2 | 2.4 | 2.8 |
Note: This is just reference. Please contact us to get suitable solution and competitive price.
Package
Packaged with exporting wooden/plywood case. And the package can be customized.
