Belt Conveyor

Belt conveyor has the advantages of large conveying capacity, simple structure, convenient maintenance, standardized components, etc. According to the requirements of the conveying process, it can be transported by a single set, or by several sets or by other conveying equipment to form a horizontal or inclined conveying system, so as to meet the needs of different types of operation lines. In addition to the belt conveyor, the conveyor in our factory also produce Mobile belt conveyor, Screw conveyor, High angle conveyor, Chain conveyor, Mesh belt conveyor, etc.

Get price on Whatsapp Send E-mail

If you want to learn more about our belt conveyor and solution, Leave a Message!

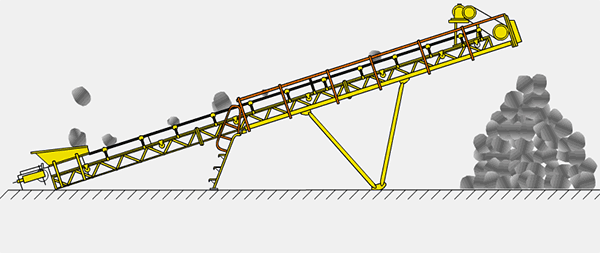

Working principle of Belt Conveyor

The belt conveyor is mainly composed of two end rollers and the closed conveyor belt on the tight sleeve. The drum that drives the conveyor belt to rotate is called driving drum (driving drum); the other drum that only changes the moving direction of the conveyor belt is called changing drum. The driving roller is driven by the motor through the reducer, and the conveyor belt is driven by the friction between the driving roller and the conveyor belt. Generally, the driving roller is installed at the discharge end to increase the traction and facilitate the dragging. The material is fed by the feeding end, falls on the rotating conveyor belt, and is transported to the unloading end for unloading by the friction of the conveyor belt.

If you want to learn more about our belt conveyor and solution, Leave a Message!

If you want to learn more about our belt conveyor and solution, Leave a Message!

Technical Parameter of Belt Conveyor

Width of Belt
(mm)

Length of Belt(m)
Power(kw)

Transfer speed
(m/s)

Capacity
(t/h)

400

≤10
3

12-15
3-4

15-30
4-7.5

1.25-2.0

30-60

500

≤10
3

12-15
4-5.5

15-30
5.5-7.5

1.25-2.0

40-80

650

≤10
4

12-15
7.5

15-30
7.5-11

1.25-2.0

80-120

800

≤10
4

12-15
7.5

15-30
7.5-15

1.25-2.0

120-200

1000

≤10
5.5

10-20
7.5-11

20-40
11-22

1.25-2.0

200-320

1200

≤10
7.5

10-20
7.5-15

20-40
15-30

1.25-2.0

290-480

1400

≤10
11

10-20
15-22

<20-40
22-45

1.25-2.0

400-680

1600

≤10
15

10-20
22-30

<20-50
30-75

1.25-2.0

600-1080

1800

≤10
18.5

10-20
30-45

<20-50
45-110

1.0-2.0

200-1500

2000

≤10
22

10-20
45-55

<20-40
55-132

1.0-2.0

1000-2000

2400

≤10
30

10-20
55-75

<20-40
75-185

1.0-2.0

1500-3000

Note:This is just reference. Please contact us to get suitable solution and competitive price.

Package

Packaged with exporting wooden/plywood case. And the package can be customized.
