Cone Crusher

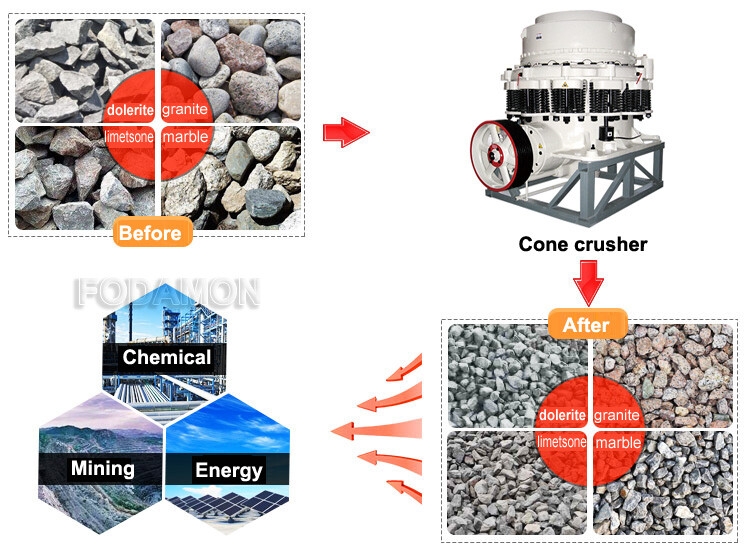

Cone crusher is widely used for secondary and fine crushing of hard rocks and ores in mining, quarry and aggregate production industries. It features stable structure, high crushing efficiency, reliable overload protection and adjustable output size for continuous industrial operation.
- Efficient Secondary Crushing – Suitable for medium and hard rock crushing
- High Crushing Performance – Stable operation with large processing capacity
- Reliable Protection System – Spring safety system protects the crushing chamber
- Wide Industrial Application – Mining, quarry and aggregate production lines
Tell us your material type, feeding size and required capacity. Our engineers can recommend a suitable cone crusher solution for your project.
If you want to learn more about our spring cone crusher or hydraulic cone crusher, Please feel free to contact us!
Description of Cone crusher
The standard type(PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing. According to stave work need of Cone crusher,cone crusher is maily usely in the compressive strength not surpassing 300Mpa each kind of ore and rock to medium crush and in broken bits .this is a typical equipment of our country for crushing hard ore to medium crush and broken bits.it is widely applied.it has the charaterisrics of high reduction ratio, high output,,few powder lost, the product granularity even, strong compatibility of hard grain.

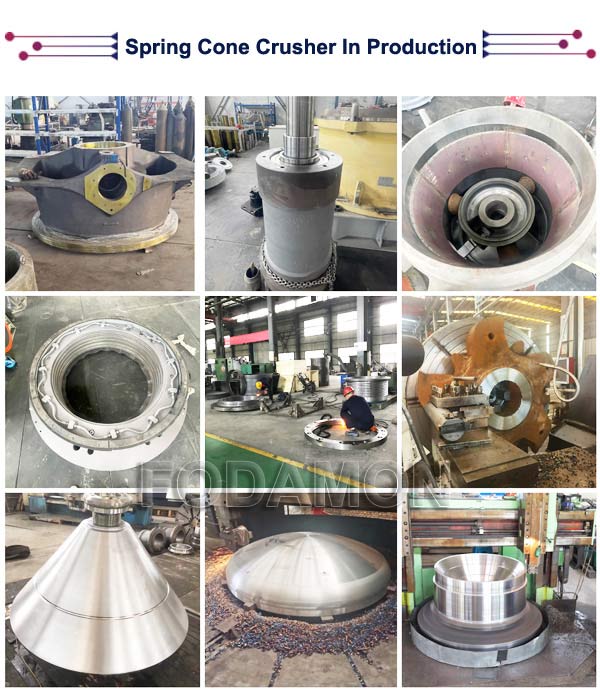

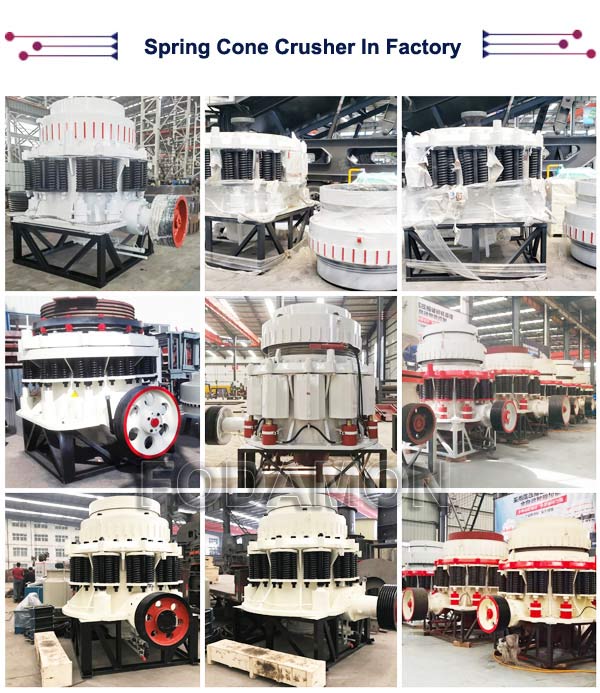

Our factory produces cone crushers of Spring Cone Crusher, Composite Cone Crusher, Multi Cylinder Hydraulic Cone Crusher, Single Cylinder Hydraulic Cone Crusher, etc.
Principle of Cone Crusher
Cone crusher crushes materials by the working surface between the movable cone and fixed cone. The movable cone of the cone crusher is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are drived by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is drived by motor through v-belts.The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the diacharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequantly the output size is determined.
If you want to learn more about our spring cone crusher or hydraulic cone crusher, Please feel free to contact us!
If you want to learn more about our spring cone crusher or hydraulic cone crusher, Please feel free to contact us!
If you want to learn more about our spring cone crusher or hydraulic cone crusher, Please feel free to contact us!
Technical Parameter of Cone Crusher
| Certification and type | Diameter of crushing cone(mm) | For material mouth width (mm) |
The largest size(mm) | Discharging addit-ionustment range(mm) | Capacity(t/h) | Eccentric sets of speed (r/min) |
Motor Power(kw) | Weight (kg) |
| PYB900 | 900 | 135 | 115 | 15-50 | 50-90 | 333 | 55 | 10117 |
| PYD900 | 900 | 50 | 40 | 3-13 | 15-50 | 333 | 55 | 10264 |
| PYB1200 | 1200 | 170 | 145 | 20-50 | 110-200 | 300 | 110 | 25000 |
| PYD1200 | 1200 | 60 | 50 | 3-15 | 18-105 | 300 | 110 | 25700 |
| PYB1750 | 1750 | 250 | 215 | 25-60 | 280-480 | 245 | 155 | 5050 |
| PYD1750 | 1750 | 100 | 85 | 5-15 | 75-320 | 245 | 155 | 50500 |
| Model | Discharge size range(mm) |
Max.feed size (mm) |
Capacity (t/h) | Power (kw) | Weight (kg) | |
| 900 | PSGB-0910 | 9-22 | 85 | 45-91 | 75 | 9980 |
| PSGB-0917 | 13-38 | 150 | 59-163 | |||
| PSGB-0918 | 25-38 | 150 | 118-163 | |||
| PSGD-0914 | 3-13 | 35 | 27-90 | 10530 | ||
| PSGD-0906 | 3-16 | 65 | 27-100 | |||
| PSGD-0907 | 6-19 | 85 | 59-129 | |||
| 1300 | PSGB-1313 | 13-31 | 115 | 109-181 | 160 | 22460 |
| PSGB-1321 | 16-38 | 178 | 132-253 | |||
| PSGB-1324 | 19-51 | 205 | 172-349 | |||
| PSGB-1325 | 25-51 | 220 | 236-358 | |||
| PSGD-1306 | 3-16 | 54 | 36-163 | 22590 | ||
| PSGD-1308 | 6-16 | 76 | 82-163 | |||
| PSGD-1310 | 8-25 | 89 | 109-227 | |||
| PSGD-1313 | 16-25 | 113 | 209-236 | |||
| 1600 | PSGB-1620 | 16-38 | 178 | 181-327 | 220 | 43270 |
| PSGB-1624 | 22-51 | 205 | 258-417 | |||
| PSGB-1626 | 25-64 | 228 | 299-635 | |||
| PSGB-1636 | 38-64 | 313 | 431-630 | |||
| PSGD-1607 | 5-13 | 60 | 90-209 | 43870 | ||
| PSGD-1608 | 6-19 | 76 | 136-281 | |||
| PSGD-1613 | 10-25 | 113 | 190-336 | |||
| PSGD-1614 | 13-25 | 113 | 253-336 | |||
Note:This is just reference. Please contact us to get suitable solution and competitive price.
Package
Packaged with exporting wooden/plywood case. And the package can be customized.

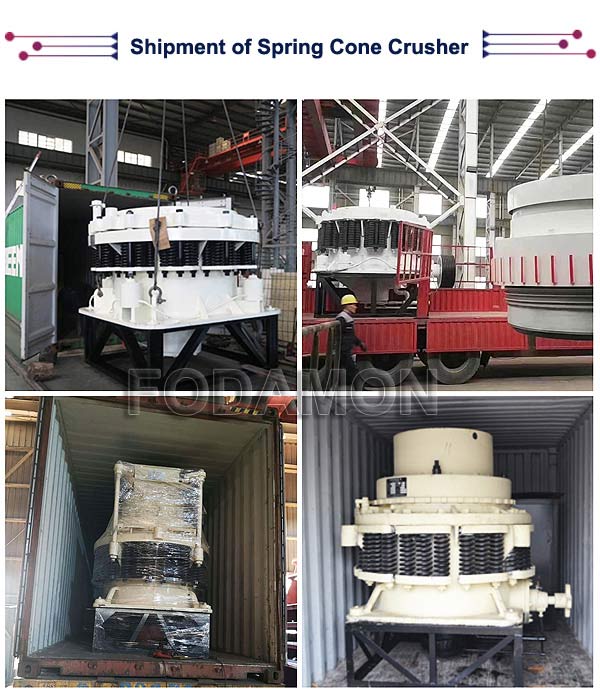

Packing Photos
Loading the cabinet
