Impact Crusher

Impact crusher is mainly used to crush many kinds of large, medium, small hard size materials with compression resistance no more than 350Mpa,in the fields of highway, reservoir, railway, airport and other fields that need rock with cubic shape. It features in high capacity, high performance, high reduction ratio, cubic shape and low flakiness.

We're here to help:
Easy ways to get the answers you need

Description

Application of Impact crusher

Impact crusher is mainly used to crush many kinds of large, medium, small hard size materials with compression resistance no more than 350Mpa,in the fields of highway, reservoir, railway, airport and other fields that need rock with cubic shape. It features in high capacity, high performance, high reduction ratio, cubic shape and low flakiness. The single rotor impact crusher has the characteristics of simple structure, big reduction ratio, low energy consumption,high output,light  weight , cubic physique end product. it can supply the uses of industry sectors such as dressing, chemistry, cement, building, fire-proof material, ceramics, glass to use in hitting garrulous and each kind of medium degree of hardness using of in broken bits material, for example: Limestone, chamotte, slag, coke, coal and so on. Compare to hammer crusher,impact crusher has bigger reduction ratio and Can fully use the high speed impact energy of entire rotor.

impact crusher fodamon machinery

Characteristics of Impact crusher

1. Heavy-duty rotor design, as well as strict detection means, to ensure high-quality rotor. Rotor is the "heart" of crusher. It is also a part of impact crusher which has strict acceptance. It plays a vital role in the work.
2. Unique structural design, the finished product is cubic, tension-free and crack-free, with good grain shape. It can crush all kinds of coarse, medium and fine materials (granite, limestone, concrete, etc.) whose feed size is not more than 500 mm and compressive strength is not more than 350 MPa.

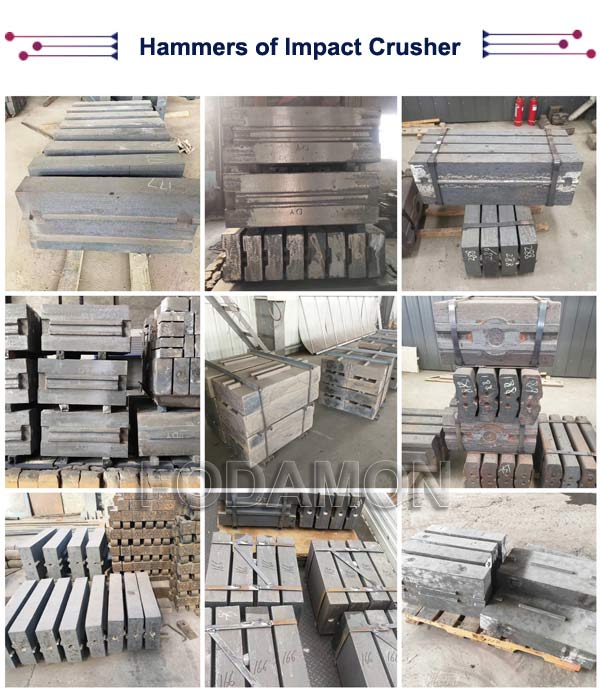

3. The impact crusher has the advantages of good particle shape, compact structure, strong rigidity of machine, large moment of inertia of rotor, high chromium plate hammer, high comprehensive benefits of impact resistance, wear resistance and crushing force.

impact crusher fodamon machinery

Working Principle of Impact crusher

The impact crusher is a kind of crushing machine which uses impact energy to crush materials. When the machine works, driven by the motor, the rotor rotates at high speed. When the material enters the action zone of the plate hammer, it impacts and crushes with the plate hammer on the rotor, and then is thrown to the impact device to crush again. Then it bounces back to the plate hammer from the impact liner. The action zone is re-broken, and the process is repeated. The material is re-broken from large to small into the first, second and third counterattack chambers until the material is broken to the required size and discharged from the outlet. By adjusting the clearance between the counterattack frame and the rotor, the grain size and shape of the material can be changed.

impact crusher fodamon machinery

impact crusher fodamon machinery

impact crusher fodamon machinery

impact crusher fodamon machinery

impact crusher fodamon machinery

impact crusher fodamon machinery

impact crusher fodamon machinery

Specification

Technical parameter of Impact crusher

Model

Specifications
(mm)

Feed opening
(mm)

Max feeding side length
(mm)

Capacity
(t/h)

Power
(kw)

Total weight
(t)

Dimensions
(LxWxH)
(mm)

PF-0607

ф644x740

320x770

100

10-20

30

4

1500x1450x1500

PF-0807

ф850x700

400x730

300

15-30

30-45

8.13

1900x1850x1500

PF-1007

ф1000x700

400x730

300

30-70

45

12

2330x1660x2300

PF-1010

ф1000x1050

400x1080

350

50-90

55

15

2370x1700x2390

PF-1210

ф1250x1050

400x1080

350

70-130

110

17.7

2680x2160x2800

PF-1214

ф1250x1400

400x1430

350

100-180

132

22.4

2650x2460x2800

PF-1315

ф1320x1500

860x1520

500

130-250

220

27

3180x2720x2920

PF-1320

ф1320x2000

860x2030

500

160-350

300

30

3200x3790x3100

Note: This is just reference. Please contact us to get suitable solution and competitive price.



Package

Packaged with exporting wooden/plywood case. And the package can be customized.

Packing Photos
Fodamon machinery

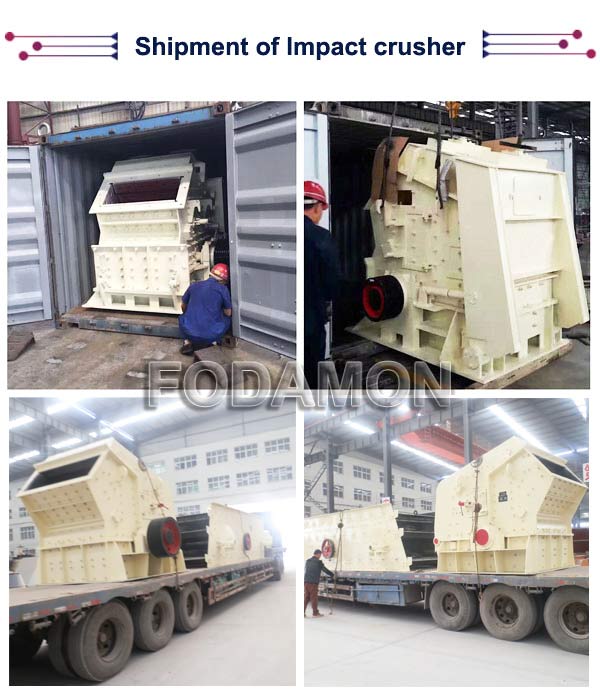

Loading the cabinet
Fodamon machinery
