Fine Sand Recovery Machine

Fine sand extractor is also called fine sand collector, fine sand recovery machine, fine sand recovery machine, fine sand recovery device, and fine sand recovery equipment.

We're here to help:
Easy ways to get the answers you need

Description

Description of Fine Sand Recovery Machine

The fine sand extractor is also called fine sand collector, fine sand recovery machine, fine sand recovery machine, fine sand recovery device, and fine sand recovery equipment. At present, most of the existing artificial mechanism sand production line adopts wet process technology. No matter which type of sand washing machine is used, the biggest disadvantage is that the fine sand (below 0.2mm particles) has a serious loss problem, and some even lose more than 20%. This not only loses production, but also seriously affects the gradation of sand, resulting in unreasonable gradation and increased fineness modulus, which greatly reduces the quality of manufactured sand products. In concrete mixing, it not only increases the amount of cement, but also increases the cost of the business, and the excessive emission of fine sand will cause the waste of land resources and the pollution of the environment. In view of the above problems, our company has successfully developed a FDMX series of fine sand recovery equipment. This equipment is a high-tech environmental protection equipment specially designed by our company to absorb advanced technology from foreign countries and combine the actual production of fine sand in the actual production of customers. In the actual application, the fine sand recovery machine does not need additional water consumption. It can extract more than 85% of the fine sand or ore which have been washed away from the original waste water. It can be directly added into the finished product pile or separate storage as a high grade material, and directly restores more than 15% of the comprehensive economic benefits for the customers.

Application of Fine Sand Collector

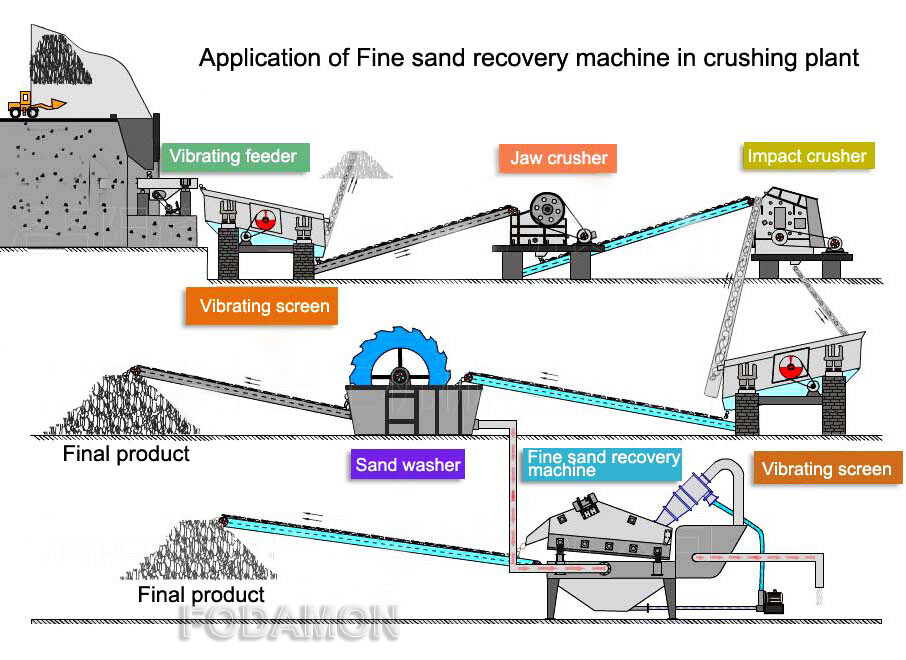

The equipment is widely used in the processing system of sand and stone aggregate of the hydropower station, the processing system of glass material, the production line of artificial sand, the recovery of coarse slime in the coal preparation plant, and the environmental protection engineering (mud purification, etc.), which can effectively solve the problem of the fine sand recovery of the production line.

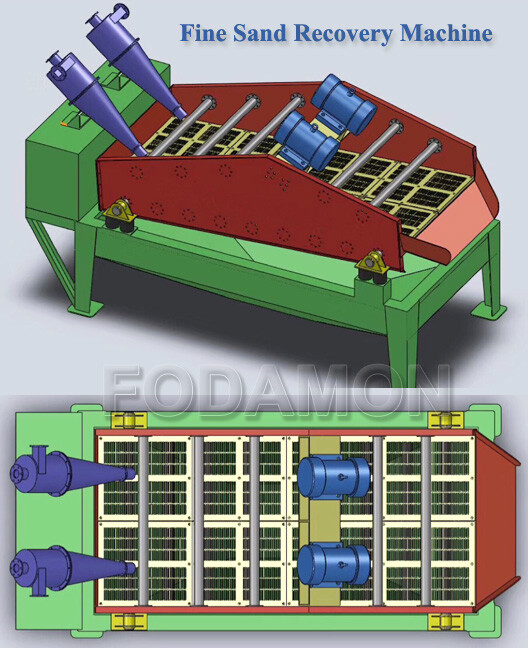

Structure of Fine Sand Recyling Machine

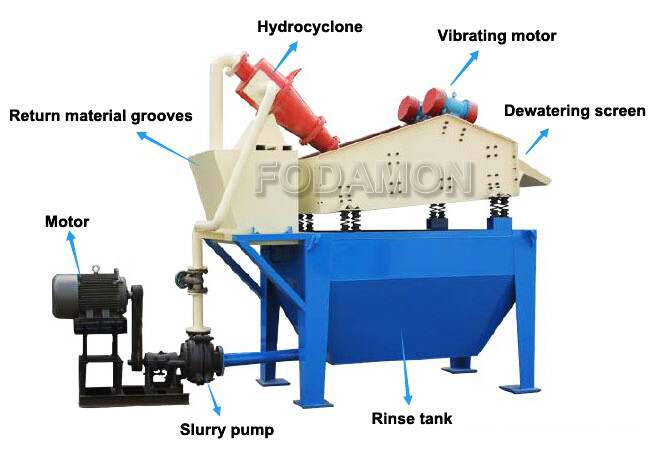

It has the following structural components: motor, vacuum high-pressure pump, sediment separator hydrocyclone, TS dewatering screen, cleaning tank and return box.

Working principle of Fine Sand Recovery Machine

The special centrifugal Slag Pump conveyed the sand water mixture in the cleaning tank to the cyclone, and the fine sand by centrifugal classification was provided to the vibrating dewatering screen. After the vibrating screen was dewatered, the fine sand and water were separated effectively, a small amount of fine sand and mud returned to the Return material grooves , then returned to cleaning tank and returned to the cyclone. The mixture of the flow produces mixing and is sent to the cyclone again. When the liquid level of the cleaning tank is too high, it is discharged through the outlet. By changing the speed of the centrifugal pump, changing the mortar concentration, adjusting the overflow water and replacing the sand mouth to adjust the fineness modulus, the three functions of cleaning, dewatering and grading can be completed.



Advantage of Fodamon Fine Sand Recovery Machine



Specification

Technical parameter of fine sand recycling machine

Model

Pump(mm)

Separator
specification (mm)

Dewatering screen

Dealing
capacity
(m3/h)

Weight
(kg)

Power(kw)

Material

Material

Power
(kw)

FDMX250

7.5-11

Cr26

250

Polyurethane

2×0.55

30-80

2050

FDMX300

11-15

Cr26

300

Polyurethane

2×0.75

40-100

2200

FDMX350

15

Cr26

350

Polyurethane

2×0.75

70-130

2555

FDMX550

15-22

Cr26

550

Polyurethane

2×1.1

100-220

3250

FDMX650

18.5-30

Cr26

650

Polyurethane

2×1.1

120-272

3945

FDMX750

37-55

Cr26

750

Polyurethane

2×1.5

180-350

4900

FDMX900

55-65

Cr26

900

Polyurethane

2×2.2

250-500

5650


Note: This is just reference, please contact us to get suitable solution and competitive price.

Package

Packaged with exporting wooden/plywood case. And the package can be customized.
