Sand Making Machine

The sand making machine is a kind of high-efficiency stone breaking equipment with domestic and international high-level developed by our company, which introduces the principle and technology of “stone breaking” crusher from bamak company of the United States and combines the actual situation of domestic sand making equipment production. At present, the model of sand making machine is mainly divided into PCL, VSI and 5x. According to the sequence, its function is more mature and advanced.

Get price on Whatsapp Send E-mail

If you want to learn more about our sand washing machine and solution, Leave a Message!

Our company’s sand making machine is widely used for medium and fine crushing (sand making) of various hard and brittle materials, such as various rocks (quartz stone, pebble, limestone, dolomite, granite, etc.), abrasives, refractories, cement clinker, iron ore, concrete aggregate, etc., especially suitable for processing and producing construction sand and road sand.

Note: in addition to the fixed sand making machine, the company also produces on-board sand making machine, which can carry various types and output of fixed sand making equipment according to the needs. There are dozens of models and specifications to choose from.

Working Principle

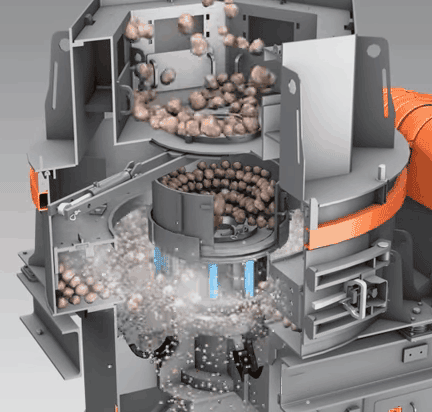

The main engine is designed with diamond shaped combined impact block. The main feature of this design is that Fodamon uses foreign high-quality alloy instead of domestic traditional manganese steel and cast alloy parts, which greatly improves the wear resistance of the impact block and the crushing capacity of the sand making machine. The equipment adopts the principle of combining stone and iron to make sand (particle shaping). First, when the material enters the hopper of the sand making machine, it enters the crushing chamber through the central feeding hole. Under the action of high-speed rotating impeller, it is thrown out from the blade with a gravity acceleration of tens of times per second, and then collides with another part of rebound falling materials, and then impacts on the material lining plate together. After being bounced back, it impacts obliquely upward to the top of the vortex chamber, and after colliding with the top chamber, it turns downward again, and then it collides with the materials thrown from the impeller flow passage mouth, forming a cycle Continuous impact crushing. After many times of impact, friction and grinding, the finished particles formed in the cavity are discharged through the discharge port.

If you want to learn more about our sand washing machine and solution, Leave a Message!

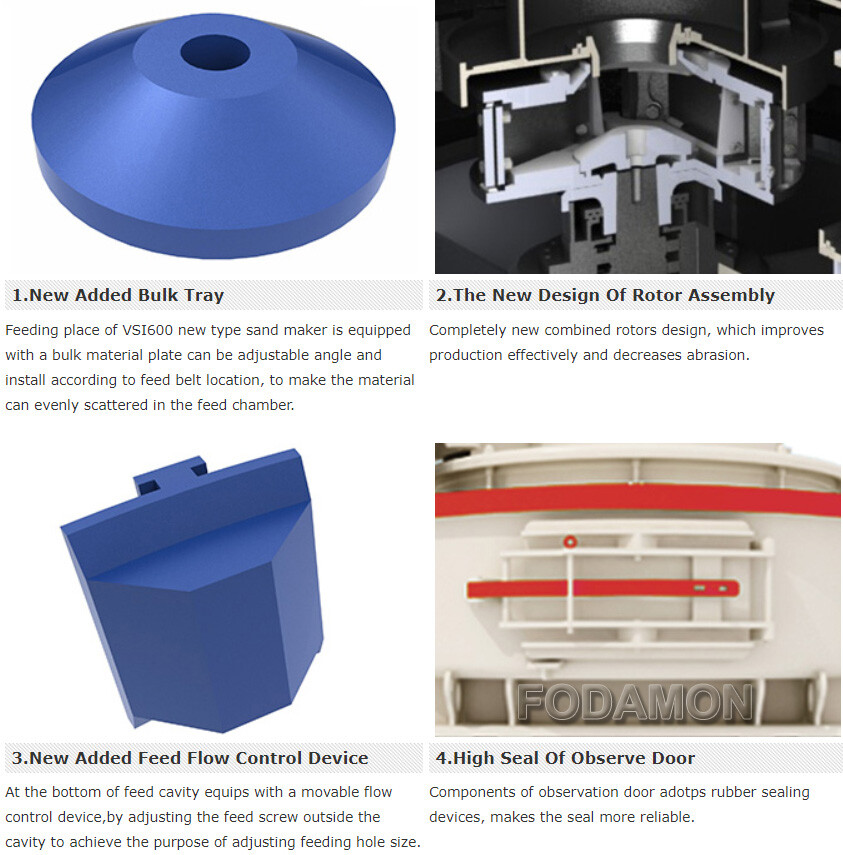

Fodamon Sand Making Machine’s Advantages

1. One machine with multiple functions, unique product design, can be used for machine-made sand production, stone shaping, excellent grain shape, high output.
2. Various modes of crushing and shaping, free conversion of stone and iron, make the finished product grading reasonable and fineness modulus controllable.
3. Alloy wear-resistant block, high-strength peripheral guard board, wear-resistant parts can be used up and down after partial wear, saving materials and improving service life.
4. Unique air self circulation system, good cavity tightness. Compared with similar products: less dust, low noise, high efficiency and environmental protection.
5. Complementary oil supply design of double oil pumps improves the service life of main engine bearings. Abnormal vibration display + abnormal vibration alarm device, intelligent control to ensure safety.
6. Brand motor, low failure rate, energy saving and high efficiency. Humanized hydraulic well cover device, convenient maintenance, labor saving and labor saving.

If you want to learn more about our sand washing machine and solution, Leave a Message!

If you want to learn more about our sand washing machine and solution, Leave a Message!

Technical parameter of Sand Making Machine

Technical Data of VSI Sand Making Machine

Model

VSI7611

VSI8518

VSI9526

VSI1140

Capacity (t/h)

Center and Ring feeding

120-180

200-260

300-380

450-520

Center feeding

60-90

100-130

150-190

225-260

Max Feed Size (mm)

Soft material

<35

<40

<45

<50

Hard material

<30

<35

<40

<45

Rotation speed (r/min)

1700-1890

1520-1690

1360-1510

1180-1310

Power for double motor (kW)

2×55 (75)

2×90 (125)

2×132 (175)

2×200 (270)

Overall Dimension L×W×H (mm)

4100×2250×2285

4140×2280×2425

4560×2450×2780

5100×2690×3200

Weight (t)

10

12.5

14.5

19

Lubrication hydraulic pressure station

Power for double oil pump

2×0.25(0.33)

Safety

To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter.

Overall dimension L×W×H(mm)

820×520×1270

Power for oil box heater

2 kW

Technical Data of 5X Sand Making Machine

Model

5X7615

5X8522

5X9532

5X1145

5X1263

Dealing capacity
(t/h)

Waterfall and central feeding

150~280

240~380

350~460

450~550

550~660

Whole center feeding

70~140

120~190

180~280

250~360

400~498

Max. Feeding size
(mm)

Soft material

<35

<40

<45

<50

<60

Hard material

<30

<35

<40

<45

<50

Speed of main shaft(r/min)

1700~1900

1500~1700

1300~1510

1100~1380

960~1210

Power(kw)

2×75 (55)

2×110 (90)

2×160 (132)

2×220 (200)

2×135 (280)

Overall size(LxWxH)  (mm)

4110x2330x2300

4140x2500x2700

4560x2600x2900

5100x2790x3320

5690x2966x3396

Weight(t)

12

14.38

18.66

27.6

32.8

Thin oil lubrication station

Power(kw)

2X0.25 (0.75)

safety protection

Double oil pump ensures oil supply, air cooling,
heating in winter and automatic shutdown without oil flow

Fuel tank heater power

2KW (4KW)

Overall size
(LxWxH) (mm)

818x520x1280mm

Technical Data of PCL Sand Making Machine

Model

Rotate speed of impeller (r/min)

Max feed size (mm)

Power (kw)

Weight (including motor) (t)

Capacity (t/h)

Overall dimensions (mm)

PCL-600

2000-2600

30

2×30

5.6

10-30

2800×1550×2030

PCL-750

1600-2100

35

2×45

7.5

30-50

3300×1800×2440

PCL-900

1300-1700

40

2×55

12

50-80

3750×2120×2660

PCL-1050

1100-1450

45

2×110

16

70-120

4480×2450×2906

PCL-1250

950-1200

45

2×132

22

80-150

4563×2650×3176

PCL-1350

900-1200

50

2×160

26

120-200

5340×2940×3650

Note:This is just reference. Please contact us to get suitable solution and competitive price.

Package

Packaged with exporting wooden/plywood case. And the package can be customized.
