Spiral Classifier

The Spiral classifier is widely used in ore dressing plant and ball mill to form closed-circuit circulation and separate ore sand, or in gravity ore dressing plant to classify ore sand and fine mud, in metal ore dressing process to carry out particle size classification of ore pulp, and in ore washing operation to desliming, dehydration and other operations. The classifier has the advantages of simple structure, reliable operation and convenient operation. Spiral classifier is called classifier for short. There are four types of classifier: high weir single screw and double screw, submergence single screw and double screw.

We're here to help:
Easy ways to get the answers you need

Description

Introduction of Spiral classifier

The Spiral classifier is widely used in ore dressing plant and ball mill to form closed-circuit circulation and separate ore sand, or in gravity ore dressing plant to classify ore sand and fine mud, in metal ore dressing process to carry out particle size classification of ore pulp, and in ore washing operation to desliming, dehydration and other operations. The classifier has the advantages of simple structure, reliable operation and convenient operation. Spiral classifier is called classifier for short. There are four types of classifier: high weir single screw and double screw, submergence single screw and double screw.

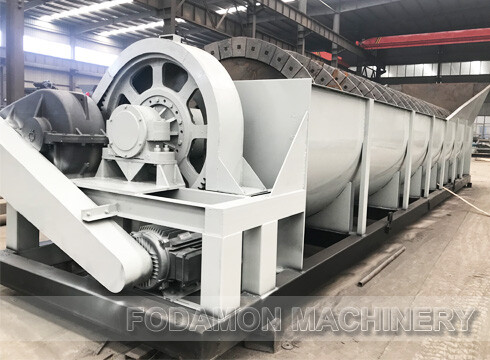

spiral classifier fodamon machinery

Structure of Spiral classifier

The classifier of our company is mainly composed of transmission device, screw body, tank body, lifting mechanism, lower support (bearing bush) and ore discharge valve. The classifier produced by our company adopts advanced technology research and development, featuring simple structure, reliable work, convenient operation, etc.
spiral classifier fodamon machinery

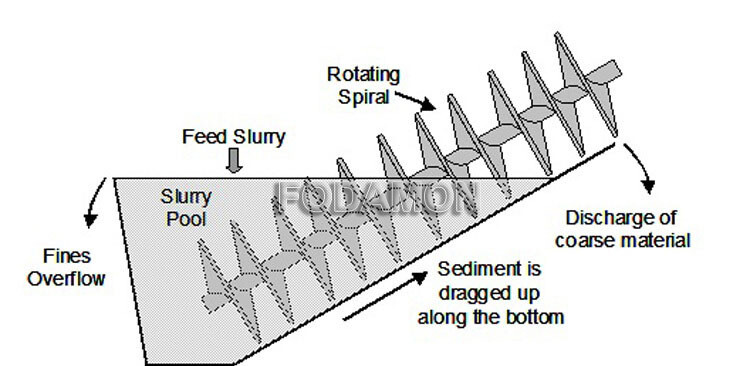

Working principle of Spiral classifier

When the machine is working, the classifier is based on the principle of different solid particle size and specific gravity, so the settling speed in the liquid is different. Fine ore particles float in the water and overflow, and coarse ore particles sink at the bottom of the tank. A classification equipment that pushes the screw to the upper part to discharge for mechanical classification. It can grade the material and powder grinded out of the mill to filtration, and then screw the coarse material into the mill feed port by using the spiral slice spiral disc to discharge the filtered fine material from the overflow pipe. The base of the machine is made of channel steel and the body is welded with steel plate. The screw shaft's water head, shaft head, adopt pig iron sleeve, wear-resistant and durable. The lifting device is divided into electric and manual.
spiral classifier fodamon machinery

Performance characteristics of Fodamon Classifier

1. The screw shaft's inlet head and shaft head adopt pig iron sleeve, which is reliable in operation and has good washing effect.
2. Fine grading granularity can meet different needs of customers, with high sand return rate.
3. The base is made of channel steel and the body is welded with steel plate, with good quality and high wear resistance.
4. The classifier adopts tile lining, with very low maintenance rate and high durability of vulnerable parts.

spiral classifier fodamon machinery

spiral classifier fodamon machinery
spiral classifier fodamon machinery

spiral classifier fodamon machinery
spiral classifier fodamon machinery
spiral classifier fodamon machinery
spiral classifier fodamon machinery

Specification


Technical parameters of spiral classifier



Model

Spiral diameter(mm)

length(mm)

Rotary speed(r/min)

Capacity(t/d)

Power(kw ≤)

Overall size(mm≤le;)

Weight(t)

Sand return

Overflow

Driving

Lifting

Length

Width

Height

FG-3

300

3000

12-30

80-150

20

1.1

----

3850

490

1140

0.7

FG-5

500

4500

8-12.5

135-210

32

1.1

----

5430

680

1480

1.9

FG-7

750

5500

6-10

340-570

65

3

----

6720

980

1820

3.1

FG-10


1000

6500

5-8

675-1080

110

5.5

----

7590

1240

2380

4.9

FC-10

8400

675-1080

85

7.5

----

9600

1240

2680

6.2

FG-12









1200

6500

4-6

1170-1870

155

7.5

2.2

8180

1570

3110

8.5

FC-12

8400

1170-1870

120

7.5

2.2

10370

1540

3920

11.0

2FG-12

6500

2340-3740

310

15

4.4

8230

2790

3110

15.8

2FC-12

8400

2340-3740

240

15

4.4

10370

2790

3920

17.6

FG-15









1500

8300

4-6

1830-2740

235

7.5

2.2

10410

1880

4080

12.5

FC-15

10500

1830-2740

185

7.5

2.2

12670

1820

4890

16.8

2FG-15

8300

2280-5480

470

15

4.4

10410

3390

4080

22.1

2FC-15

10500

2280-5480

370

15

4.4

12670

3370

4890

30.7

FG-20









2000

8400

3.6-5.5

3290-5940

400

11-15

3

10790

2530

4490

20.5

FC-20

12900

3210-5940

320

11-15

3

15610

2530

5340

28.5

2FG-20

8400

7780-11880

800

22-30

6

11000

4600

4490

35.5

2FC-20

12900

7780-11880

640

22-30

6

15760

4600

5640

48.7

FG-24



 2400

9130

3.67

6800

580

15

3

11650

2910

4970

26.8

FC-24

14130

6800

490

18.5

4

16580

2930

7190

41.0

2FG-24

9130

13600

1160

30

6

12710

5430

5690

45.8

2FC-24

14130

13700

910

37

8

17710

5430

8000

67.9

2FG-30

 3000

12500

3.2

23300

1785

40

8

16020

6640

6350

73.0

2FC-30

14300

23300

1410

----

----

17091

----

8680

84.8

Note:This is just reference. Please contact us to get suitable solution and competitive price.

Package

Packaged with exporting wooden/plywood case. And the package can be customized.
