Jaw Crusher

Jaw crusher is a trusted and reliable brand for its high quality and good manufacturing. Jaw Crusher which is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity.
Stone crushing line
Sand making production line

Ore Beneficiation Line

We're here to help:
Easy ways to get the answers you need

Description

Application of Jaw Crusher

Jaw crusher is a trusted and reliable brand for its high quality and good manufacturing. Jaw Crusher which is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost.


stone jaw crusher-Fodamon Machinery

Structure of Jaw Crusher

The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.

Structure of Fodamon Jaw Crusher



Features of Jaw Crusher



1. Deep "V" crushing chamber, less crushing blind zone, increased feed capacity and output.
2. Energy saving of equipment is good, energy saving of single machine is 15%-30%, power consumption of 1 ton of limestone is reduced by 1-2 KWh/t,
    annual electricity cost can be saved by 14285.71 USD around, system energy saving is doubled, and operation cost is low.
3. Gasket-type adjusting device for discharging inlet and outlet has wide adjusting range, convenience and reliability, and strong flexibility of equipment, which can meet the requirements of different users.

Features of Jaw Crusher-Fodamon Machinery.jpg


Features of Jaw Crusher

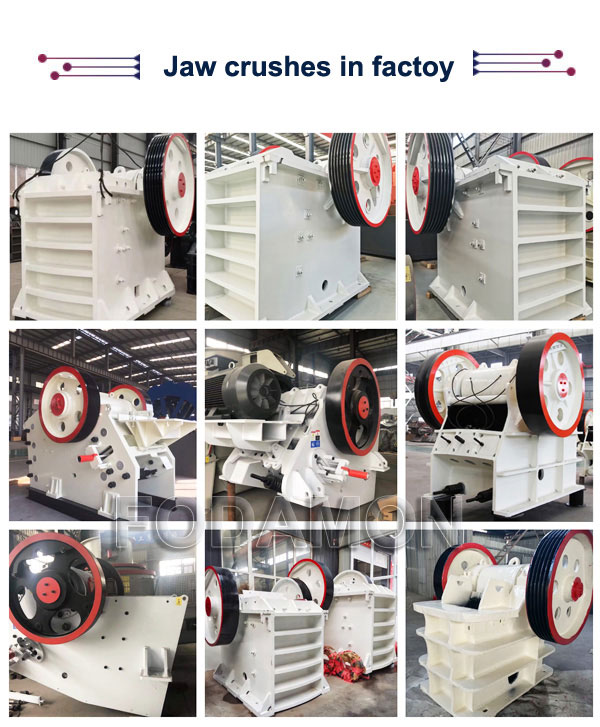

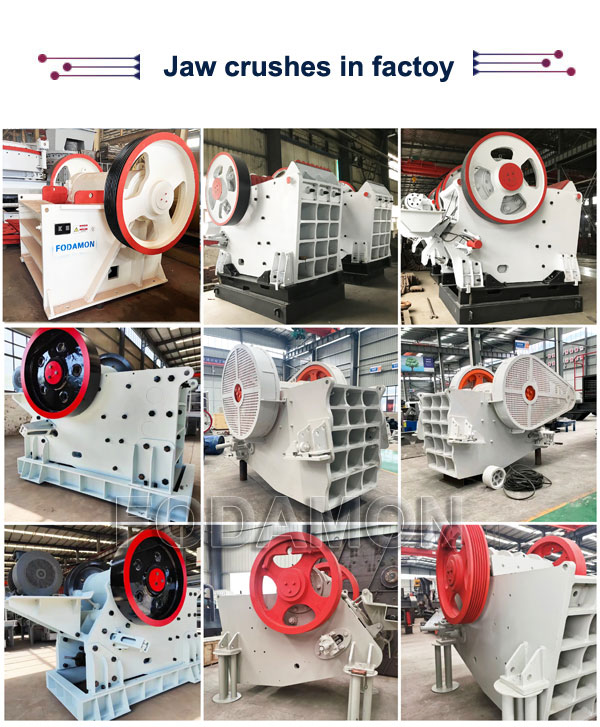

Jaw crusher in factory-Fodamon Machinery

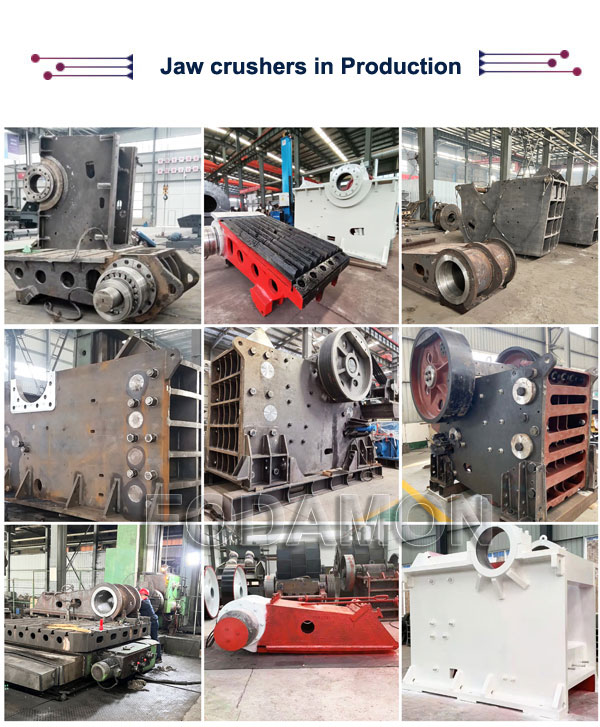

jaw crusher in production-Fodamon Machinery

Multi-form customization-Fodamon Machinery

Multi-form customization such as jaw crusher only, movable type, with support frame, with diesel generator, with screening, with feeder, etc.
Multi-color customization such as red, blue, yellow, white, black, etc.

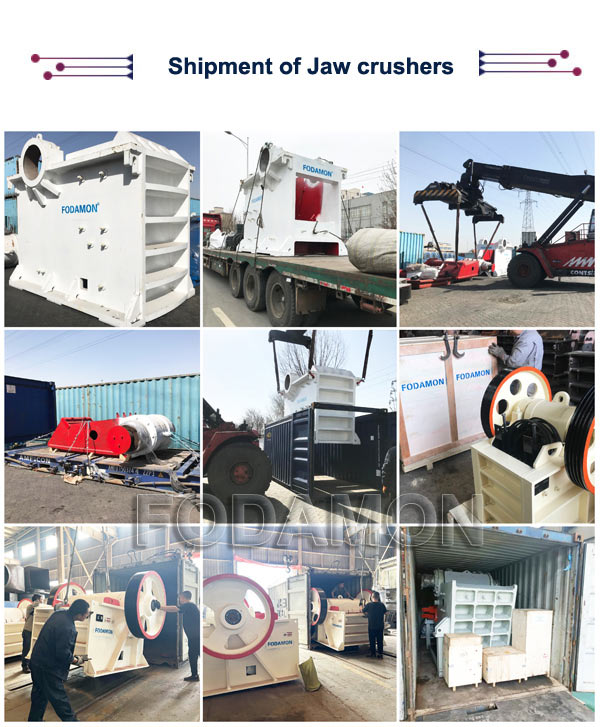

Shipment of jaw crusher-Fodamon Machinery

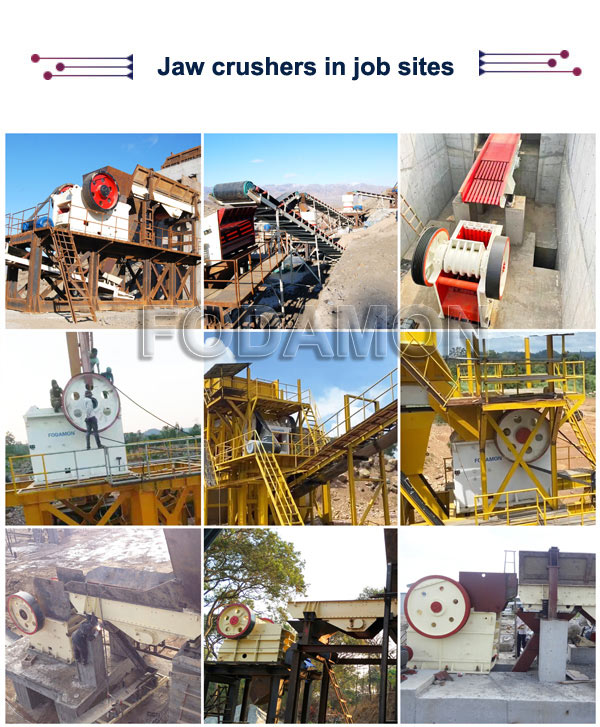

Jaw crusher in job site-Fodamon Machinery

Final product after crushing-Fodamon Machinery

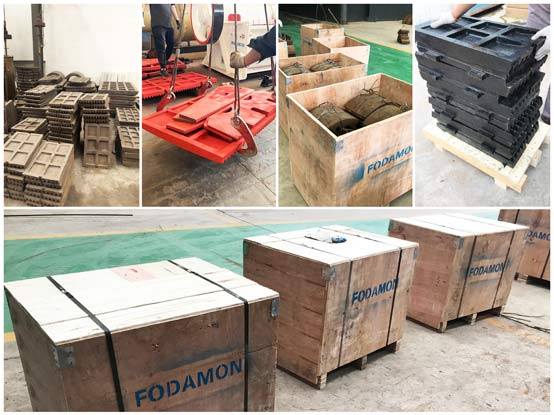

Spare parts of Jaw crusher-Fodamon Machinery

Wearing parts service life of Jaw crusher


The service life of the vulnerable parts of jaw crusher is of great concern to many customers. Fodamon manufacturer takes the user's demand as the starting point of production, pursues the quality, and makes great efforts in the manufacture of jaw crusher. The wear-resistant high manganese steel is used in the movable and fixed lining plates. For more materials and service life, please refer to the table below for your reference. (Note: The actual service life depends on the individual)

Wear parts name Material General Term of Use
(Month)
Minimum reserve
Movable jaw plate High manganese steel 4-10 2 set
Fixed jaw plate High manganese steel 4-10 2 set
Elbow plate Cast iron 2-8 2 set
Main bearing bush Cast Babbitt Alloy 24-30 1 set
Eccentric bearing liner Cast Babbitt Alloy 36-42 1 set
Movable jaw spindle bearing bush Bronze 12-18 1 set
Tile spring Spring steel 6-12 2 pcs
Bearing Bearing steel 6-12 2 pcs
Spring tie rod Carbon steel 6-12 2 pcs
Shim Carbon steel 4-10 2 set



Jaw crusher packing-Fodamon Machinery.jpg

Specification


Technical parameter of Jaw Crusher



Type

Feed opening
(mm)

Max feeding size
(mm)

Adjusting range of discharge opening
(mm)

Capacity

(t/h)

Rotation speed of eccentric shaft
(r/min)

Motor power
(kw)

Total weight
(t)

Dimensions
(LxWxH)
(mm)

PE-150x250

150x250

125

10-40

1-3

250

5.5

0.6

720x660x850

PE-200x300

200x300

180

15-50

2-6

260

7.5

1

910x750x990

PE-200x350

200x350

180

18-70

3-10

260

11

1.3

1000x870x990

PE-250x400

250x400

210

20-60

5-20

300

15

2.8

1300x1090x1270

PE-400x600

400x600

340

40-100

16-60

275

30

7

1730x1730x1630

PE-500x750

500x750

425

50-100

40-110

275

55

12

1980x2080x1870

PE-600x900II

600x900

500

65-160

50-180

250

55-75

17

2190x2206x2300

PE-600x900

600x900

500

75-200

60-200

250

75

20

2290x2290x2400

PE-750x1060

750x1060

630

80-140

115-330

250

110

29

2660x2430x 800

PE-870x1060

870x1060

660

200-260

290-336

250

110

31.5

2810x2430x2800

PE-900x1060

900x1060

685

230-290

160-400

250

110

33

2870x2420x2940

PE-900x1200

900x1200

750

95-165

220-450

200

110

52

3380x2870x3330

PE-1000x1200

1000x1200

850

195-265

315-500

200

110

55

3480x3876x3330

PE-1200x1500

1200x1500

1020

150-300

400-800

180

160

100.9

4200x3300x3500

PEX-150x750

150x750

120

18-48

8-25

320

15

3.8

1200x1530x1060

PEX-250x750

250x750

210

25-60

13-35

330

30

5.5

1380x1750x1540

PEX-250x1000

250x1000

210

25-60

16-52

330

37

7

1560x1950x1390

PEX-250x1200

250x1200

210

25-60

20-61

330

45

8.5

2140x1660x1500

PEX-300x1300

300x1300

250

20-90

16-105

300

75

11

2720x1950x1600

Note: This is just reference. Please contact us to get suitable solution and competitive price.

Package

Packaged with exporting wooden/plywood case. And the package can be customized.

Packing Photos
Fodamon machinery
Loading the cabinet
Fodamon machinery

Inquiry
