Sand Washing Machine

Sand Washing Machines are a kind of water washing style equipment to be matched with the sand maker and can reduce the dust and stone powder which mixes with the final sand, Its novel seal structure, the reliable transmission device, guarantees the elution water effect, is one kind of highly effective sand washer that coordinates with sand making machine.Sand washing machine is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and cement mixture station and so on.

We're here to help:
Easy ways to get the answers you need

Description

Description of Sand Washing Machine


Sand Washing Machines are a kind of water washing style equipment to be matched with the sand maker and can reduce the dust and stone powder which mixes with the final sand, Its novel seal structure, the reliable transmission device, guarantees the elution water effect, is one kind of highly effective sand washer that coordinates with sand making machine.Sand washing machine is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and cement mixture station and so on. Our sand washer has the characteristics of high cleaning,reasonable structure,big process load, small power loss, low loss of substances in process of washing.

Description of Sand Washing Machine

Working Principle of Sand Washing Machine


The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally,the sand and stone goes to the out launder from the rotary impellor to finish the washing task.

Working Principle of Sand Washing Machine

Characteristics of Sand Washing Machine

Reasonable structure.
Large capacity.
Low consumption.
Little loss of the sand during the washing process.
Low failure rate.

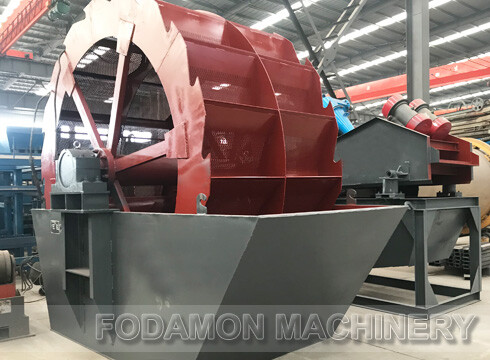

Sand washer in workshop


Sand washer in workshop
Sand washer in workshop
Sand washer in workshop
Sand washer in workshop
Sand washer in workshop
Sand washer in workshop
Sand washer in workshop
Sand washer in workshop
Sand washer in workshop
Sand washer in workshop
Sand washer in workshop

Sand washing machine in jobsite


Sand washing machine in jobsite
Sand washing machine in jobsite
Sand washing machine in jobsite
Sand washing machine in jobsite
Sand washing machine in jobsite
Sand washing machine in jobsite
Sand washing machine in jobsite
Sand washing machine in jobsite
Sand washing machine in jobsite
Sand washing machine in jobsite
Sand washing machine in jobsite
Sand washing machine in jobsite
Sand washing machine in jobsite

Sand washer delivery


Sand washer delivery
Sand washer delivery
Sand washer delivery
Sand washer delivery
Sand washer delivery

Specification



Technical Data of Sand Making machine



Model

Capacity
(t/h)

Return sand capacity(t/h)

Power
(kw)

Weight
(kg)

GX2000

8-40

3-8

4

1900

GX2600

20-100

5-15

5.5

3500

GX2800

50-130

8-70

7.5

5100

GX3200

240-300

80-130

11

8800

GX3600

280-500

100-200

15

14200


Note: This is just reference. Please contact us to get suitable solution and competitive price.

Package

Packaged with exporting wooden/plywood case. And the package can be customized.
