The 200-250 tph stone crushing line is a complete set of equipment for crushing stones in mining, construction, and other industries. The crushing line is designed with high efficiency, low energy consumption, and environmental protection in mind.
The configuration of the crushing line is as follows:
- Primary jaw crusher PE-750×1100, which can crush various materials with a compressive strength of up to 320 MPa.
- Secondary two PF1214 impact crushers, which can crush materials with a particle size of less than 500 mm and a compressive strength of up to 350 MPa.
- Vibrating feeder GZD1100×4900, which can feed the materials into the primary jaw crusher evenly and continuously.
- Vibrating screen 3YK2160, which can screen out the required final products.
- Belt conveyor B1200×28m, which can transport the final products to the finished material stockpile.
The two PF1214 impact crushers are the key equipment in the crushing line. They are efficient, reliable, and have a high crushing ratio, making them suitable for crushing various materials with high hardness and large size. Additionally, they are equipped with a hydraulic opening device, which makes it easy to replace the wearing parts and adjust the discharge size.
Overall, the 200-250 tph stone crushing line is a reliable and efficient solution for crushing stones in various industries. It is an ideal investment for customers looking for a high-quality, low-cost, and environmentally friendly crushing solution.

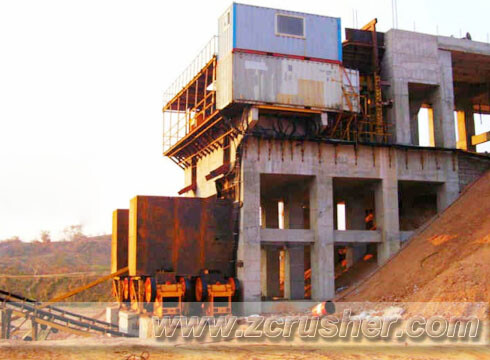

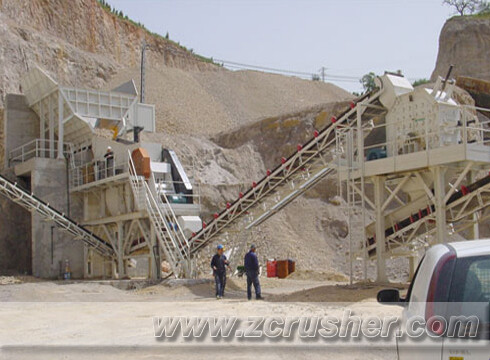

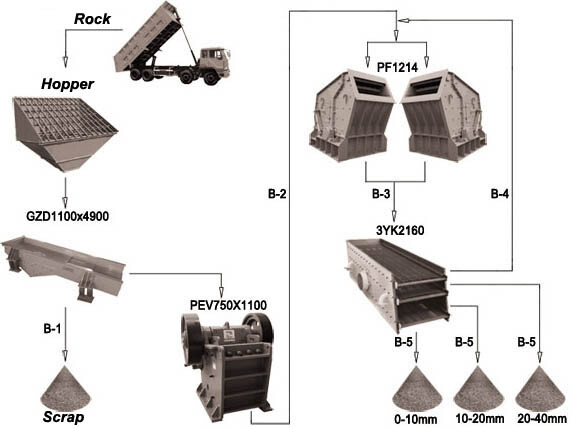

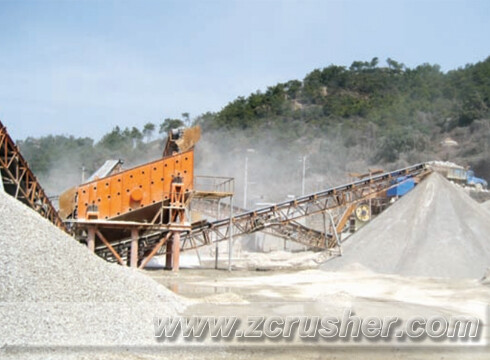

200-250 tph stone crushing line 200-250 tph stone crushing line Configuration of 200-250 tph stone crushing line
No. | Equipment | Model | Motor (KW) | Number |
Hopper | LC3000X4000 | 1 | ||
I | Vribrating Feeder | GZD1100x4900 | 11 | 1 |
II | Jaw Crusher | PEV750x1100 | 110 | 1 |
III | Impact Crusher | PF1214 | 132 | 2 |
Ⅳ | Vribrating Screen | 3YK2160 | 30 | 1 |
Belt | ||||
No. | Name | Length (m) | Motor (KW) | Number |
B1 | B500 | 18 | 5.5 | 1 |
B2 | B1000 | 22 | 11 | 1 |
B3 | B1000 | 23 | 11 | 1 |
B4 | B800 | 25 | 11 | 1 |
B5 | B500 | 20 | 5.5 | 3 |
