The 30T/H-50T/H stone crushing plant is used to crush stone with a size of less than 350mm, such as hard limestone, granite, basalt, and pebble. Products of various sizes can be made according to customers’ special requirements for use in hydroelectric stations, building materials, highways, railways, urban construction, etc. The impact crusher can be replaced by a cone crusher according to the customer’s requirements or the hardness of the stone.

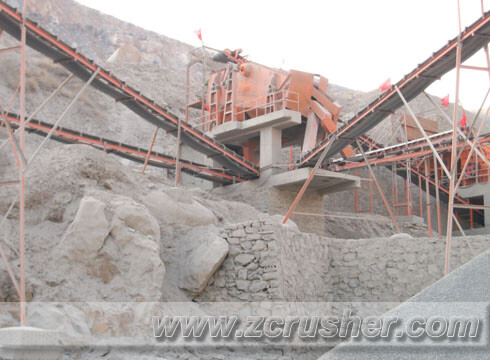

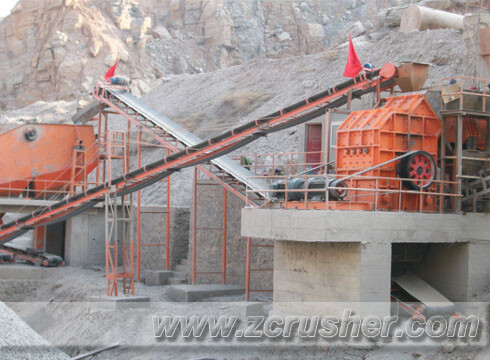

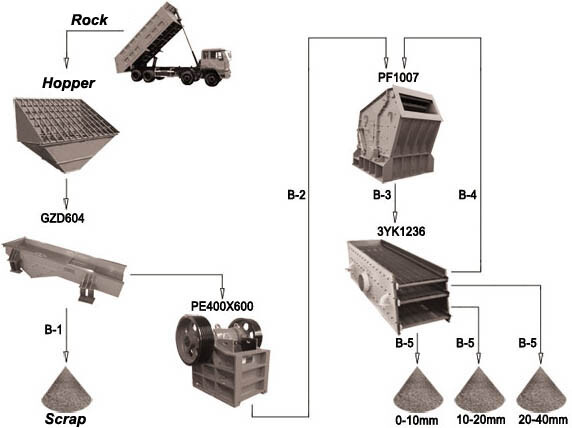

30T/H-50T/H Stone crushing line 30T/H-50T/H Stone crushing line Process of 30T/H-50T/H Stone crushing line
No. | Equipment | Model | Motor (KW) | Number |
Hopper | LC2000X3000 | 1 | ||
I | Vribrating Feeder | GZD604 | 1.5 | 1 |
II | Jaw Crusher | PE400x600 | 30 | 1 |
III | Impact Crusher | PF1007 | 55 | 1 |
Ⅳ | Vribrating Screen | 3YK1236 | 7.5 | 1 |
Belt | ||||
No. | Name | Length (m) | Motor (KW) | Number |
B1 | B500 | 15 | 5.5 | 1 |
B2 | B500 | 12 | 3 | 1 |
B3 | B500 | 18 | 5.5 | 1 |
B4 | B500 | 19 | 5.5 | 1 |
B5 | B500 | 15 | 5.5 | 3 |
Regarding the early service customer site, we have made improvements to the color, appearance, and quality of our stone crushing equipment. Please refer to our new quotation.
