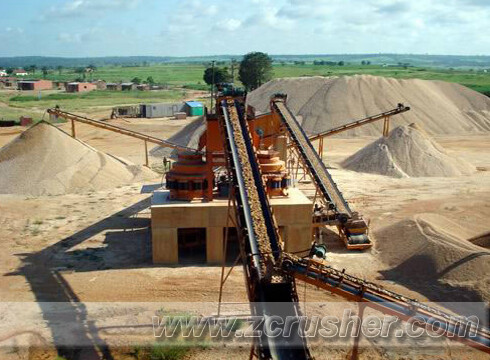

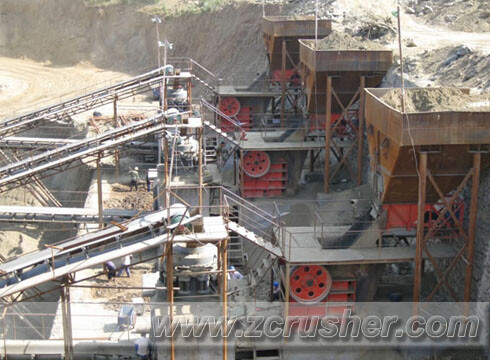

100T/H-150T/H Stone crushing line

100T/H-150T/H Stone crushing plant is used to crush stone with less than 500mm,such as hard limestone,granite,basalt,pebble. Product with various sizes can be made according to customers'special requirements in hydroelectric station,building materials,highway,railway,urban construction,etc. Impact crusher can be replaced by cone crusher according to customers'requirement or hardness of stone.

We're here to help:
Easy ways to get the answers you need
Share With:

Description

100T/H-150T/H Stone crushing plant is used to crush stone with less than 500mm,such as hard limestone,granite,basalt,pebble. Product with various sizes can be made according to customers'special requirements in hydroelectric station,building materials,highway,railway,urban construction,etc. Impact crusher can be replaced by cone crusher according to customers'requirement or hardness of stone.

No. Equipment Model Motor (KW) Number
  Hopper LC3000X4000   1
I Vribrating Feeder GZD950x3800 6 1
II Jaw Crusher PE600x900 75 1
III Impact Crusher PF1214 132 1
Vribrating Screen 3YK1860 22 1
Belt
No. Name Length (m) Motor (KW) Number
B1 B500 15 5.5 1
B2 B800 17 7.5 1
B3 B800 23 11 1
B4 B500 25 7.5 1
B5 B500 20 5.5 3

Note: This is just reference,if you want to know more please contact us to get your process and offer.

Package

Packaged with exporting equipment case. And the package can be customized.

Packing Photos
Fodamon machinery
Loading the cabinet
Fodamon machinery
