Hammer Crusher

    hammer crusher
    hammer crusher
    hammer crusher
    hammer crusher
hammer crusherhammer crusherhammer crusherhammer crusher

Description of Hammer crusher:
The hammer crusher also named hammer mill, it crushes by the collisions between high-speed hammer and materials, has features of simple structure, high reduction ration, high efficiency etc. The PC was developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement,coal,metallurgic, construction material, road building, and petroleum & chemical industries.The hammer crusher is one of the main equipment for intermediate and fine crushing the brittle materials with less than intermediate such as limestone coal and other used in metallurgy, building material, chemical and water - power industry, with a feature of big crushing ratio and even product graininess.The hammer crusher(hammer mill) crushes by the collisions between high-speed hammer and materiasl,and the hammer crusher(hammer mill) features are in its simple structure, high reduction ration, high efficiency, etc. The PC hammer crusher(hammer mill) were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.
Operating principle of Hammer Crusher:
In the hammer mill machine, the motor drives the rotor rotate at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.
Technical parameter of Hammer Crusher:

Type

Max Material-in size (mm)

Max Material-out size (mm)

Yield
(t/h)

Motor power
(kw)

Machine weight
(kg)

PC400x300

100

10

5-10

11

800

PC600x400

120

15

10-25

18.5

1500

PC800x600

120

15

20-35

55

3100

PC1000x800

200

13

20-40

115

7900

PC1000x1000

200

15

30-80

132

8650

PC1300x1200

250

19

80-200

240

13600


Technical parameter of Heavy Hammer Crusher:

Type

Rotor diameter*Length
(mm)

Feed size(adjustable)(mm)

Discharge size(adjustable)
(mm)

Capacity
(t/h)

Power
(kw)

weight
(t)

0806

800*600

≤300-400

0-40

60

55

3.8

0808

800*800

≤400-500

0-50

80-100

75

6.5

1008

1000*800

≤500-650

0-60

100-120

90

8

1010

1000*1000

≤600-750

0-70

120-150

132

11.5

1210

1200*1000

≤650-800

0-70

150-200

185

14

1510

1500*950

≤800

0-80

160-250

200

17.5

1512

1500*1160

≤800

0-80

250-300

250

19

1615

1650*1450

≤900

0-80

200-380

280

28

2015

2000*1500

≤1200

0-80

400-500

400

32

Note:This is just reference,if you want to know more please contact us to get offer and process.

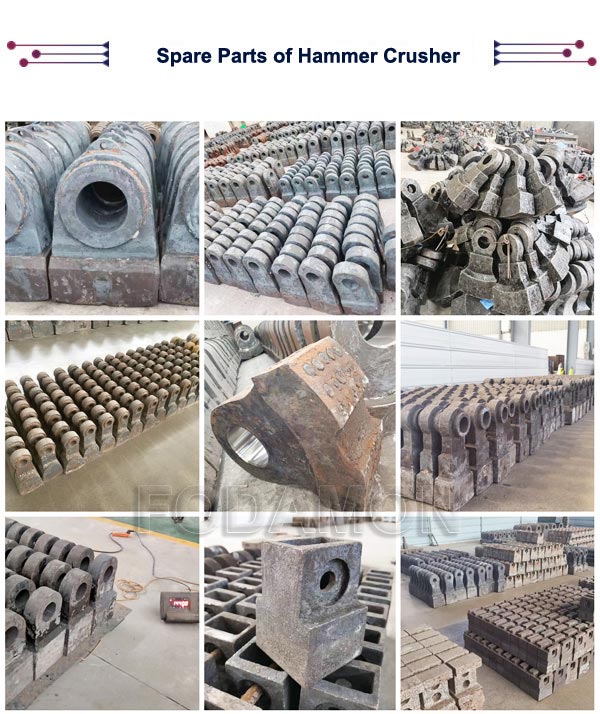

Spare part:
