Mobile crusher

Jaw Crusher and Vibrating Feeder compose the unit of Mobile Crusher (rough crushing unit), and at the same time along with highly efficifent double deck feeder. Double deck feeder can reduce the load capacity of Jaw Crusher, and also increase the total production. Jaw Crusher is widely used in many ways, and Mobile Crusher are mainly used in primary crushing on mountain extraction. The capacity range of Mobile Jaw Crusher is 50500t/h.

We're here to help:
Easy ways to get the answers you need
Share With:

Description



Mobile Crusher description
Jaw Crusher and Vibrating Feeder compose the unit of Mobile Crusher (rough crushing unit), and at the same time along with highly efficifent double deck feeder. Double deck feeder can reduce the load capacity of Jaw Crusher, and also increase the total production. Jaw Crusher is widely used in many ways, and Mobile Crusher are mainly used in primary crushing on mountain extraction. The capacity range of Mobile Jaw Crusher is 50500t/h.

Mobile Crusher Application
The Mobile Crusher(mobile crushing and screening plants) is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce required size and output for consumers.



Mobile Crusher Features
The Mobile Crusher(plants) has the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.

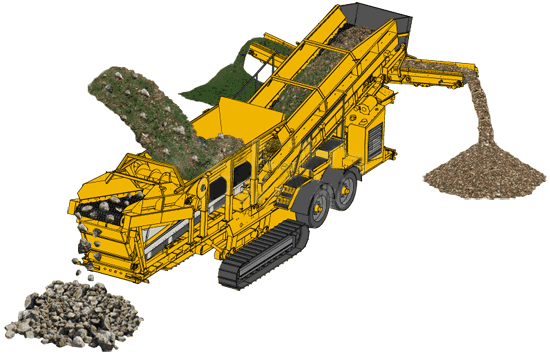

Mobile Crusher structure and working principle

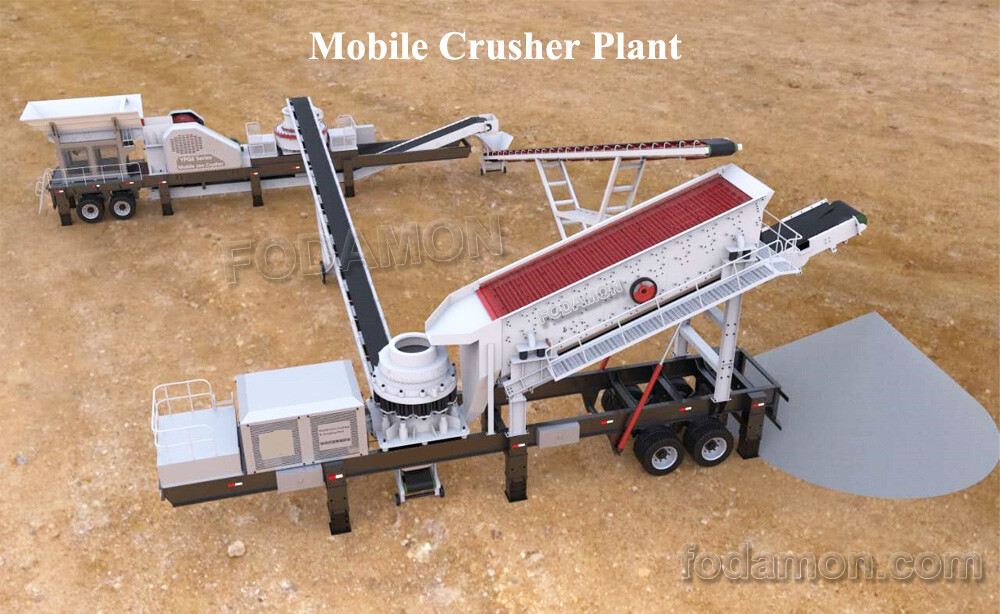

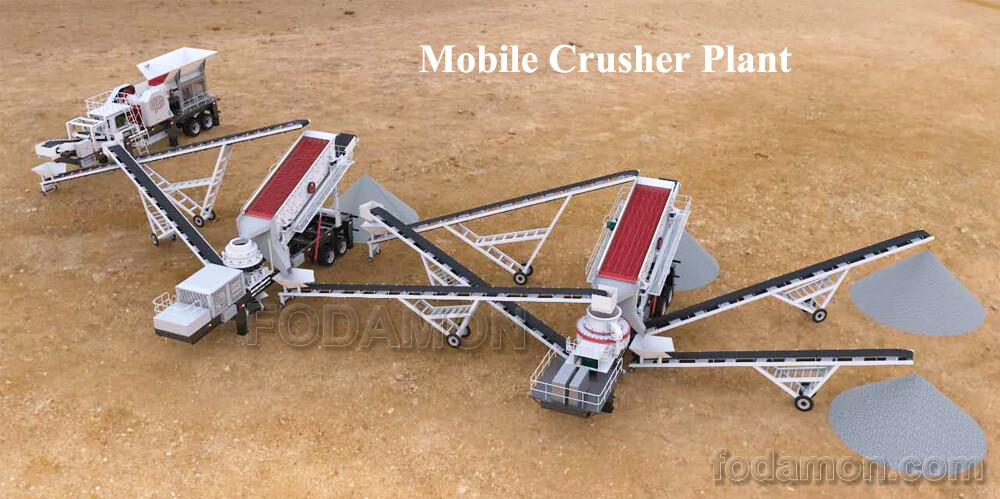

The Mobile Crusher(mobile crushing and screening plants) is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, they can respectively assume their different responsibility, and the belt conveyer is responsible for material transmitting and piling up between each crushing station.

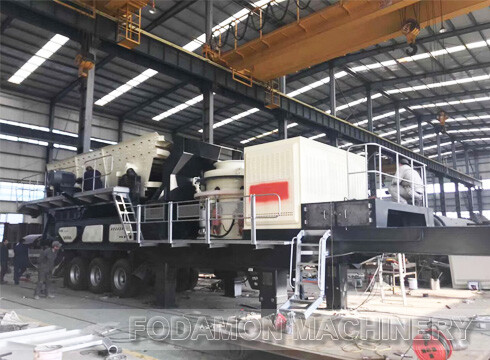

Mobile crusher in workshop
















Mobile crusher working in jobsite

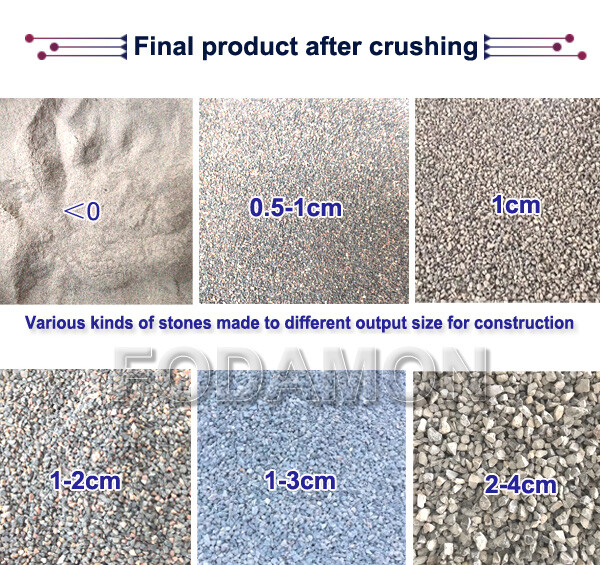

Finished product size

Specification

Mobile crusher technical parameter

SMC Jaw crusher

SMC600

SMC750

SMC900

SMC1060

SMC1200

SMC1300PEX

Transport dimension

Length (mm)

8600

9600

11097

13300

15800

9460

Width (mm)

2520

2520

3759

2900

2900

2743

Height (mm)

3770

3500

3500

4440

4500

3988

Weight (Kg)

15240

22000

32270

57880

98000

25220

Axle load (kg)

10121

14500

21380

38430

64000

14730

Traction pin load (kg)

5118

7500

10890

19450

34000

10490

Jaw crusher

Model

PE400X600

PE500X750

PE600X900

PE750X1060

PE900X1200

PEX300X1300

Inlet size (mm)

400X600

500X750

600X900

750X1060

900X1200

300X1300

Adjustment range of discharge port (mm)

40-100

50-100

65-180

80-180

95-225

20-90

Capacity (m³/h)

10-35

25-60

30-85

70-150

100-240

10-65

Vibrating feeder

Hopper volume(m³)

3

4

7

10

10

3

Width of Hopper(mm)

2200

2500

3000

3000

3000

2200

Model

GZT0724

GZT0724

GZT0932Y

ZSW490X110

ZSW600X130

GZT0724

Belt conveyor

Model

B650X6

B800X7

B1000X8

B1000X11

B1200X13

B1000X7

Note: This is just reference. Please contact us to get suitable solution and competitive price.

Package

Packaged with exporting wooden/plywood case. And the package can be customized.
