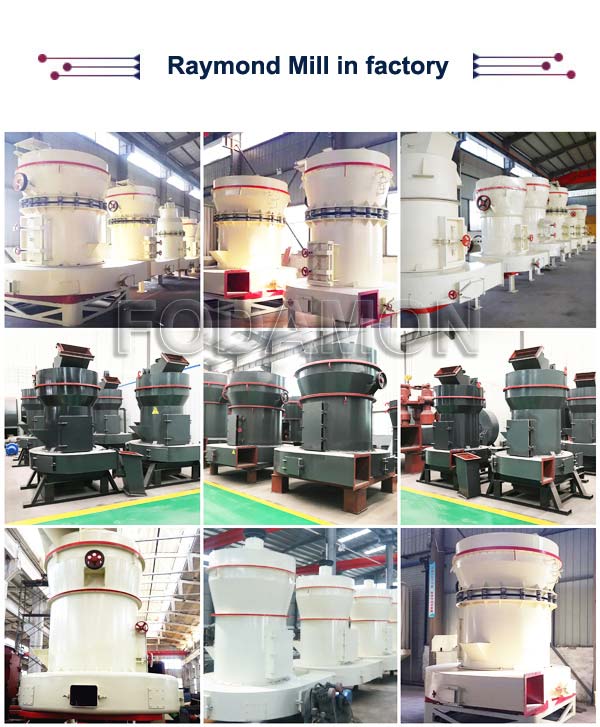

Introduction of Raymond Mill:

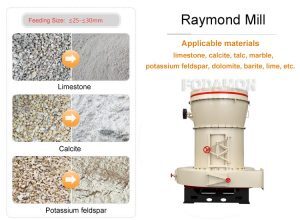

Raymond Roller mill, also called Raymond grinding mill. It is suitable for producing powder in mineral, chemical, building and other industries. Raymond Roller Mill is suitable for grinding of all kinds of materials whose Moh’s hardness is below 9.3, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc, fluorite, clay, white mud, mica, refractory material, glass, total about 1000 kinds of materials.

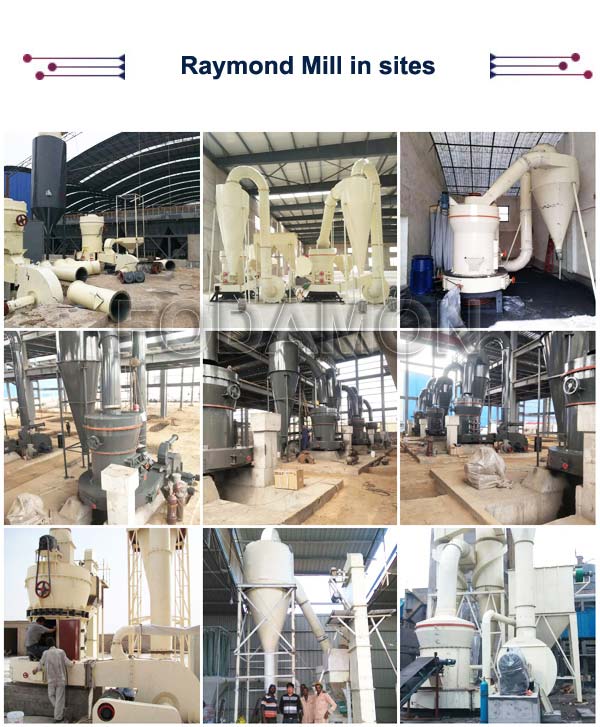

Working Principle of Raymond Mill:
The standard configuration of Raymond Mill consists of main unit, reducer, powder classifier, cyclone powder collector, dust cleaner, blower, control cabinet motor and pipes. The optional accessories include crusher, bucket elevator, feeder. Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products; The airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.

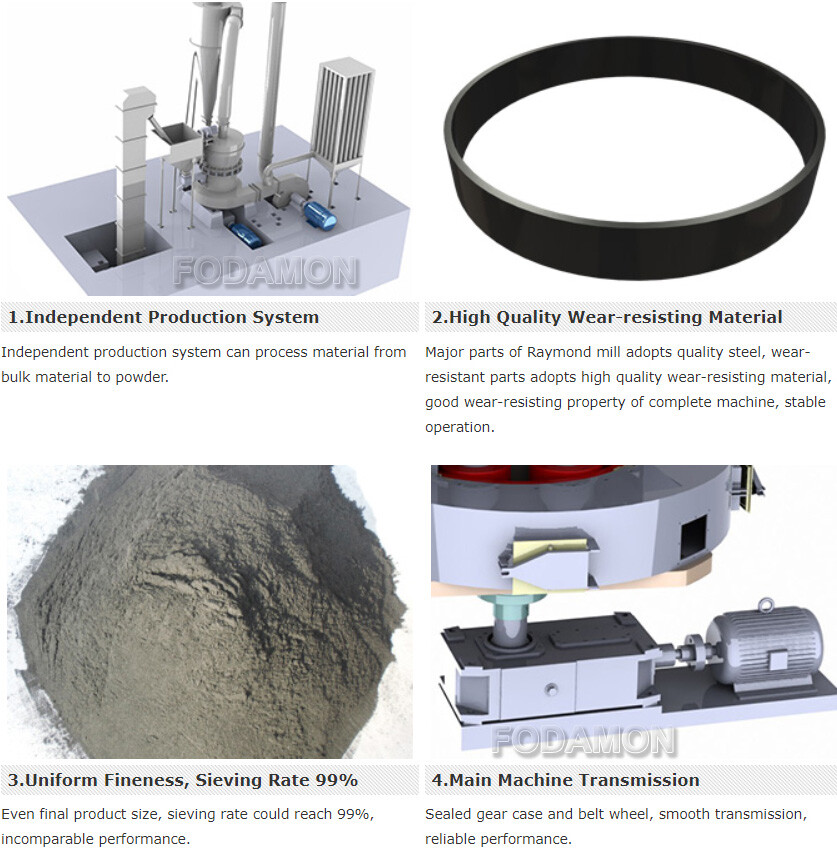

Advantages of Raymond mill:
1.Vertical structure, so it has small footprint, strong system.
2.Compared with other mills, Raymond Mill has high passing rate - 99%.
3. Adjustable particle size:80-325mesh
4.The main drive device of Raymond mill adopts airtight gear box and belt pulley, the transmission is stable and the operation is reliable.

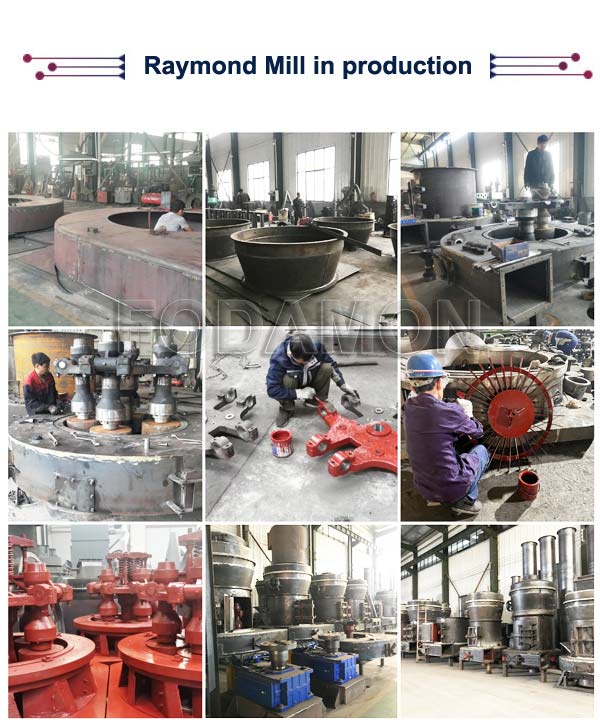

5.Important components are made of high quality castings and profiles, ensuring the durability of the whole equipment.
6.The centralized control is used in the electric system, the mill can basically realize unmanned operation, and the maintenance is convenient.
Technical parameter of Raymond mill:

Model

3R1410

3R2115

3R2615

3R2715

4R2715

3R3016

4R3016

3R3019

4R3019

4R3216

5R4119

Max.feedsize(mm)

8

15

20

20

20

20

20

20

20

25

30

Final size(mesh)

80-325

80-325

80-325

80-325

80-325

80-325

80-325

80-325

80-325

80-325

80-325

Speed(r/m)

240

180

160

160

160

150

150

150

150

140

105

Inner diameter of ring(mm)

435

630

780

820

820

890

890

890

890

970

1280

Diameter of roller(mm)

140

210

260

270

270

300

300

300

300

320

410

Height of roller(mm)

110

150

150

150

150

160

160

190

190

160

190

Main motor(kw)

7.5

15

18.5

22

22

30

37

30

37

45

75

Fan motor(kw)

5.5

11

15

18.5

18.5

22

30

22

30

37

75

Analytical motor (kw)

1.1

2.2

2.2

2.2

2.2

3

5.5

3

5.5

5.5

7.5

Capacity(ton/shift)

0.5-1.5

1-2

1.5-2.5

1.5-3

1.5-3.5

2-5

2-6

3-8

3.5-8.5

4-10

6-15

Note:This is just reference,if you want to know more please contact us to get offer and process.

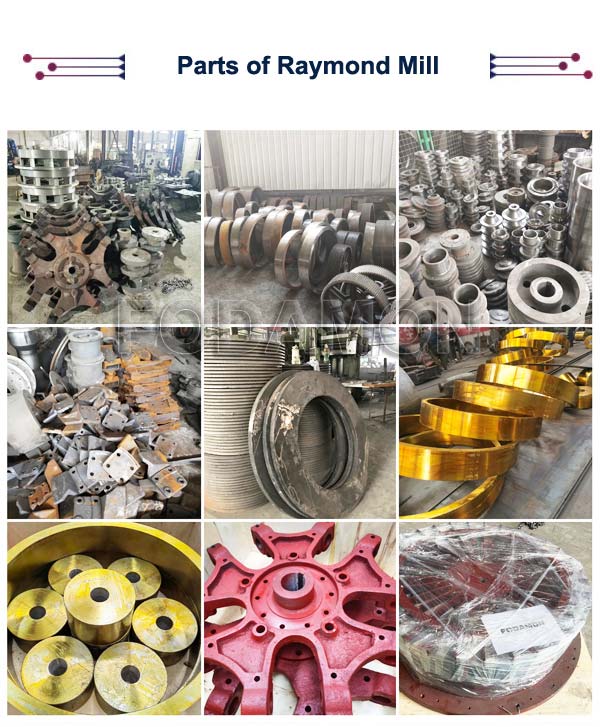

Spare part:
