300T/H-400T/H Stone crushing line
300T/H-400T/H Stone crushing plant is used to crush stone with less than 800mm,such as hard limestone,granite,basalt,pebble. Product with various sizes can be made according to customers'special requirements in hydroelectric station,building materials,highway,railway,urban construction,etc. Impact crusher can be replaced by cone crusher according to customers'requirement or hardness of stone.

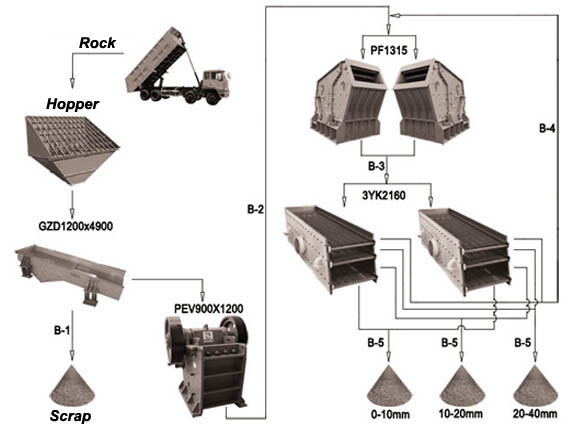

| No. | Equipment | Model | Motor (KW) | Number |
| Hopper | LC3000X4000 | 1 | ||
| I | Vribrating Feeder | GZD1200x4900 | 15 | 1 |
| II | Jaw Crusher | PE900x1200 | 132 | 1 |
| III | Impact Crusher | PF1315 | 200 | 2 |
| Ⅳ | Vribrating Screen | 3YK2160 | 30 | 2 |
| Belt | ||||
| No. | Name | Length (m) | Motor (KW) | Number |
| B1 | B500 | 18 | 5.5 | 1 |
| B2 | B1200 | 25 | 15 | 1 |
| B3 | B1200 | 24 | 15 | 2 |
| B4 | B800 | 26 | 11 | 1 |
| B5 | B800 | 20 | 11 | 3 |
Note: This is just reference,if you want to know more please contact us to get your process and offer.
