Home > Stone crushing line > 50T/H-80T/H Stone crushing line

50T/H-80T/H Stone crushing line

    50T/H-80T/H Stone crushing line
    50T/H-80T/H Stone crushing line
    50T/H-80T/H Stone crushing line
    50T/H-80T/H Stone crushing line
50T/H-80T/H Stone crushing line50T/H-80T/H Stone crushing line50T/H-80T/H Stone crushing line50T/H-80T/H Stone crushing line

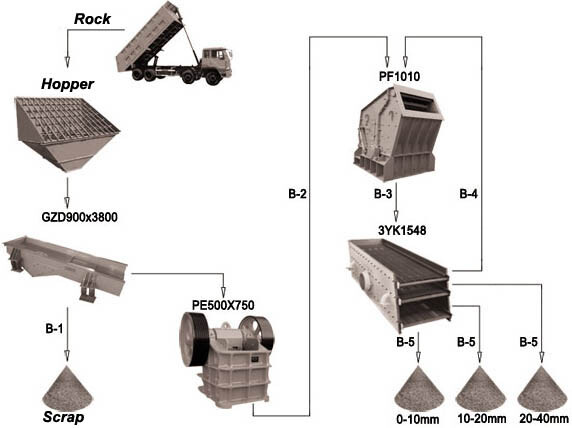

50T/H-80T/H Stone crushing plant is used to crush stone with less than 425mm,such as hard limestone,granite,basalt,pebble. Product with various sizes can be made according to customers'special requirements in hydroelectric station,building materials,highway,railway,urban construction,etc. Impact crusher can be replaced by cone crusher according to customers'requirement or hardness of stone.


No. Equipment Model Motor (KW) Number
Hopper LC3000X4000 1
I Vribrating Feeder GZD900x3800 6 1
II Jaw Crusher PE500x750 55 1
III Impact Crusher PF1010 75 1
Vribrating Screen 3YK1548 15 1
Belt
No. Name Length (m) Motor (KW) Number
B1 B500 15 5.5 1
B2 B650 15 5.5 1
B3 B650 21 5.5 1
B4 B500 22 5.5 1
B5 B500 15 5.5 3

Note: This is just reference,if you want to know more please contact us to get your process and offer.
